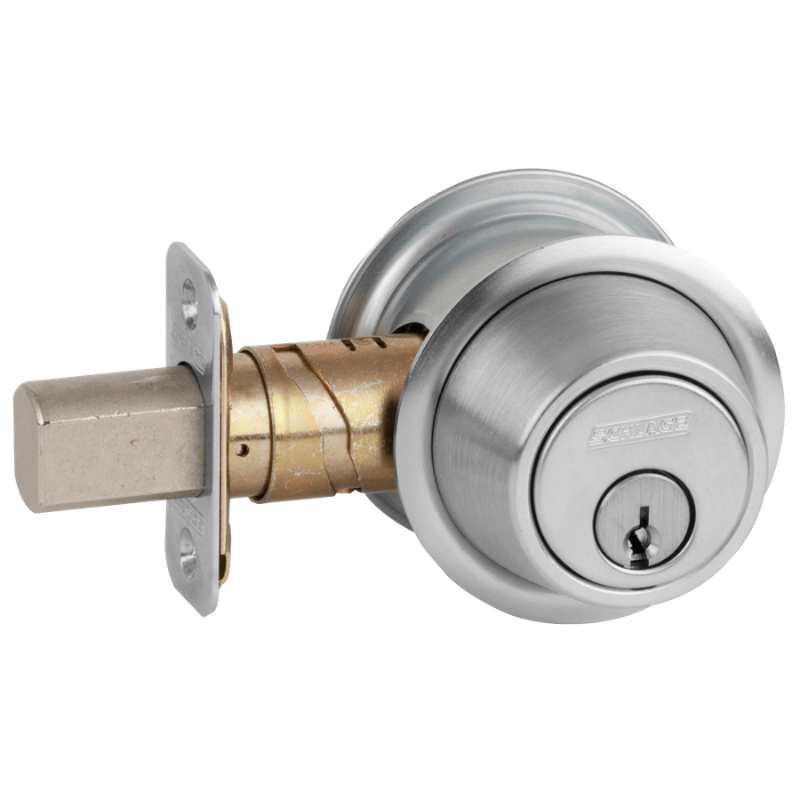

Schlage B562P-626-KA4 Double Cylinder Deadbolt, Keyed Outside/Keyed Inside, 6-Pin Sch C Keyed Alike in sets of 4 [2] keys,, 12-288 Latch, 10-094 Strike, 1-3/8" - 1-7/8" Door Thickness, Grade 2, Non Handed, US26D Satin Chrome Finish
The Schlage B562P Double Cylinder Deadbolt delivers dependable security for openings where key control is needed on both sides of the door. Part of the trusted Schlage B-Series, this Grade 2 deadbolt features a keyed cylinder on the exterior and interior, making it ideal for doors with adjacent glass where a thumbturn could be a vulnerability. Finished in Satin Chrome (US26D), it combines a clean, professional appearance with solid commercial-grade performance. This unit ships keyed alike in sets of four with two keys per lock, using a 6-pin Schlage C keyway. It fits standard door thicknesses and installs easily on both residential and light commercial applications.
Features
- Double cylinder design with keyed operation on both the exterior and interior.
- Grade 2 certification for reliable commercial and residential use.
- 6-Pin Schlage C keyway keyed alike in sets of 4, supplied with 2 keys.
- Fits door thicknesses from 1-3/8" to 1-7/8".
- Non-handed for versatile left or right door installation.
- Attractive Satin Chrome (US26D) finish.
Functional Details
The double cylinder deadbolt requires a key to operate the bolt from both the inside and outside, giving added protection on doors with sidelights or glass panels where an intruder could otherwise reach a thumbturn.
- Key operated from both the inside and outside.
Included Components
This deadbolt ships complete with the 12-288 latch and 10-094 strike for a ready-to-install package.
| Manufacturer | Schlage |
|---|---|
| SKU | B562P-KA4 |
| Grade | Grade 2 |
| Function | Double Cylinder, Keyed Outside/Keyed Inside |
| Finish | US26D / 626 Satin Chrome |
| Keying | Keyed Alike in sets of 4 |
| Handing | Non-Handed |
| Latch | 12-288 |
| Strike | 10-094 |
| Unit of Measure | Each |
| ANSI Number | A156.5, Grade 2 |
| Cylinder Type | 6-Pin Schlage C Keyway |
|---|---|
| Keys Included | 2 Keys per lock |
| Door Thickness Range | 1-3/8" to 1-7/8" |
| Bolt Type | Deadbolt |
| Bolt Throw | 1" |
| Backset | 2-3/8" or 2-3/4" adjustable |
| Latch Model | 12-288 |
| Strike Model | 10-094 |
| Operation | Key both sides |
| Pins | 6-Pin |
