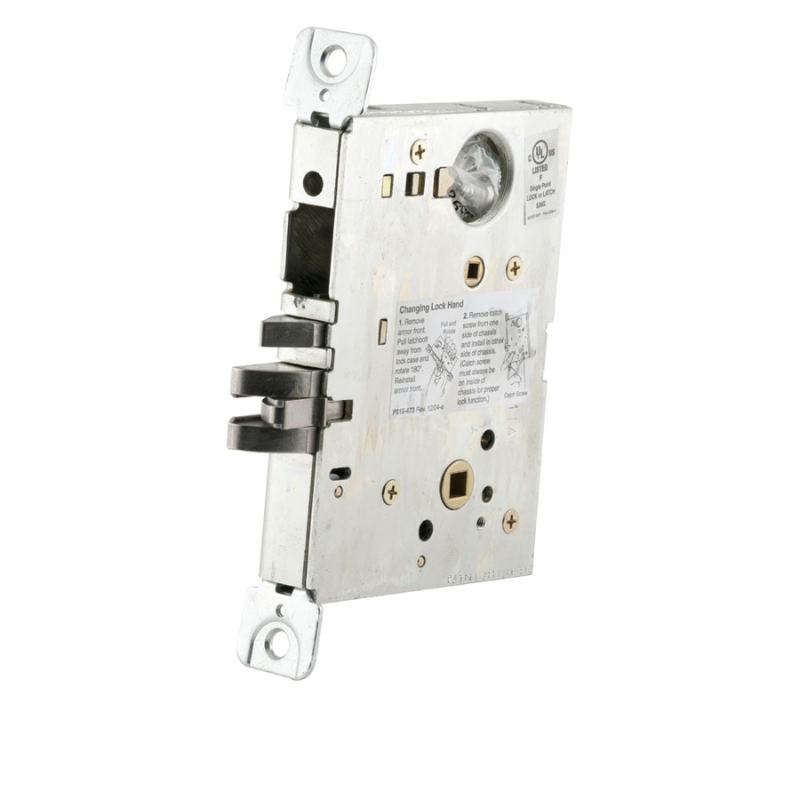

Schlage L9070LB-RH-134 Classroom Mortise Lock, Lock Body Only, Grade 1, Right Hand, Field Reversible

The Schlage L9070LB-RH-134 is a Grade 1 classroom mortise lock body designed for the demanding environments found in schools, universities, and other high-traffic commercial facilities. Part of Schlage's respected L Series, this lock body provides the durable, dependable performance that architects and facility managers rely on. Shipped as a lock body only, it gives installers flexibility to pair it with the trim and finish that suits the opening. Configured for right-hand doors and field reversible, it adapts easily to different installations. Built to ANSI/BHMA A156.13 standards, the L9070 delivers proven security and long-lasting durability for institutional applications.

Features

• Grade 1 mortise lock body engineered for heavy-duty commercial and institutional use.
• Classroom function (L9070) allows secure control of the opening from the outside.
• Ships as a lock body only, allowing custom pairing with L Series trim and levers.
• Right-hand configuration that is field reversible for installation flexibility.
• Meets ANSI/BHMA A156.13 Series 1000 Grade 1 requirements.
• Compatible with the full range of Schlage L Series lever and escutcheon designs.

Functional Details

The L9070 classroom function locks and unlocks the outside lever using a key, while the inside lever always allows free egress. This lets an instructor control access to the room without ever locking anyone inside.

• Outside lever is locked and unlocked by key.
• Inside lever is always free for immediate egress.
• Latchbolt is retracted by lever from either side except when outside lever is locked by key.
