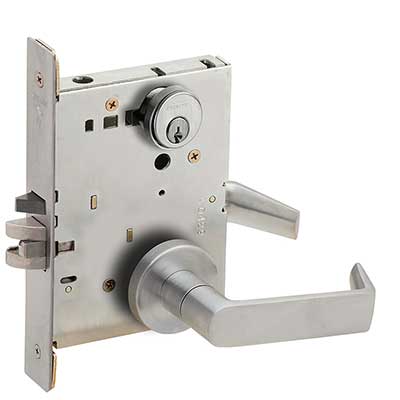

The Schlage L9080P 03A 626 is a Grade 1 storeroom function lock. This L9000 Series function is an 80 or storeroom function. A Storeroom function lock functions, Latchbolt retracted by lever/knob inside or key outside, Outside lever/knob is always inoperable, Auxiliary latch deadlocks latchbolt when door is closed, Inside lever always free for immediate egress. The 06A is the 06 Straight Return lever and A Rose. Comes in a Standard Conventional Cylinder, Keyed Random, with 2 Keys. The l9080 is field reversible and not handed. The finish is a 626/US26D satin chrome finish.
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
| Manufacturer | Schlage |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.13-2017 Series 1000, Grade 1 |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
| Function | 9080-Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F07 - Storeroom/Exit |
| Lever/Knob Design |
06 Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
A Rose |
| Rose/Escutcheon Dimensions | 2-1/8" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8" |
| Cam Type | Schlage L |
| Cam Number | L583-254 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 10-072 1316 626 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-3/16" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |

Good Experience and part worked as it should
