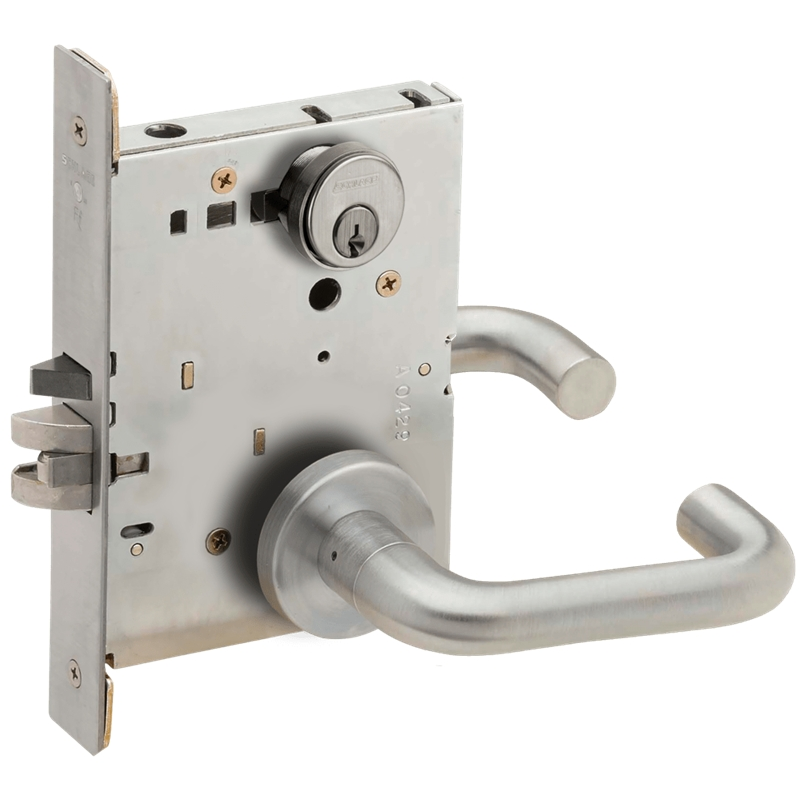

Schlage LV9453L-03A-626, Entry with Deadbolt, Less Cylinder, 03 Lever, A Rose, Vandlgard, Grade 1, Field Reversible, Satin Chrome Finish

The Schlage LV9453L-03A-626 is a Grade 1 mortise lock designed for entry openings that require both a latch and deadbolt in one heavy-duty assembly. Built with Schlage's Vandlgard feature, the outside lever stays clear-turning under forced entry, protecting the internal mechanism from damage and reducing maintenance in high-traffic commercial settings. This configuration ships less cylinder, giving you the flexibility to pair it with the keying system of your choice. Fitted with the 03 lever and A rose, it offers a clean, contemporary look in a durable Satin Chrome (626) finish. The field-reversible design simplifies installation on either hand of door.

Features

• Grade 1 mortise lock engineered for demanding commercial entry applications.
• Vandlgard feature allows the outside lever to rotate freely under attack, preventing internal damage.
• Integrated deadbolt provides added security alongside the standard latch.
• Ships less cylinder for compatibility with your preferred keying system.
• 03 lever paired with A rose trim for a modern appearance.
• Field reversible to accommodate either door handing on site.
• Finished in durable Satin Chrome (626) for long-lasting appeal.

Functional Details

The LV9453L operates as an entry function with deadbolt. The latchbolt is retracted by the lever from either side unless the outside lever is locked, while the deadbolt is thrown and retracted by key or thumbturn for enhanced security.

• Latchbolt by lever from either side except when outside lever is locked by key.
• Deadbolt thrown or retracted by key outside or turn inside.
• Outside lever locked and unlocked by key.
• When outside lever is locked, latchbolt is retracted by key outside or lever inside.
• Auxiliary latch deadlocks latchbolt when door is closed.
