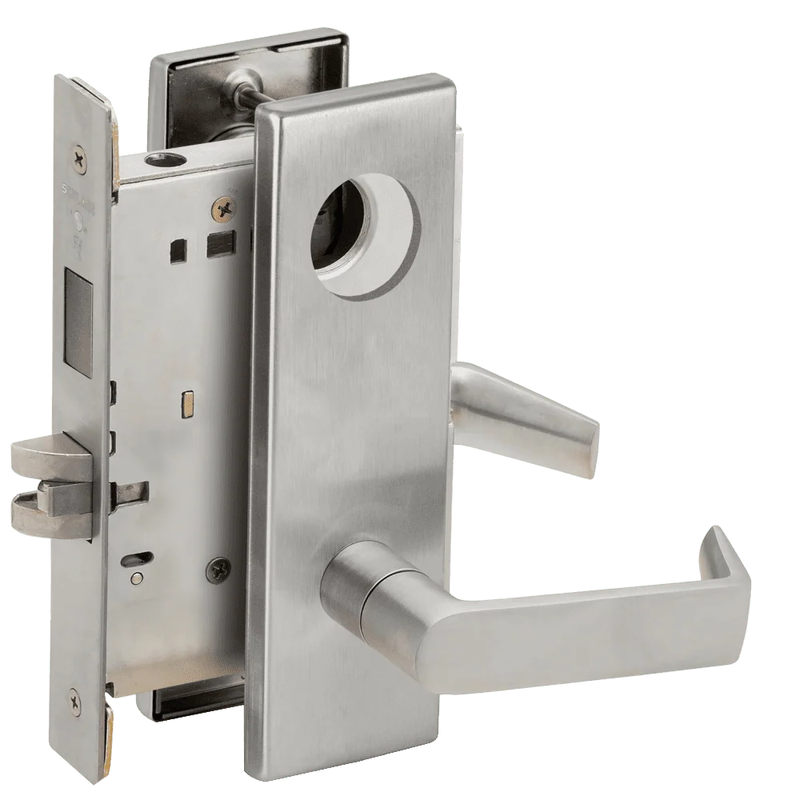

Schlage LV9456L-06N-626, Corridor With Deadbolt, Less Cylinder, 06 Lever, N Escutcheon, Vandlgard, Grade 1, Field Reversible, Satin Chrome Finish

The Schlage LV9456L-06N-626 is a Grade 1 corridor mortise lock with deadbolt, engineered for demanding commercial openings that require both security and dependable daily use. Part of the L9000 series, it features Schlage's Vandlgard function, which protects the lever and internal components from forced rotation during attempted vandalism. Supplied less cylinder for flexible keying, this lockset pairs the 06 lever with the N escutcheon trim and arrives in a durable satin chrome (626) finish. Field-reversible for left- or right-hand doors, it delivers the rugged construction and clean styling trusted across schools, offices, healthcare facilities, and other high-traffic environments.

Features

• Grade 1 ANSI/BHMA certified mortise lock built for heavy-duty commercial applications.
• Corridor function with deadbolt provides added security for passage openings.
• Vandlgard design allows the outside lever to rotate freely when locked, protecting the lock mechanism from damage.
• Supplied less cylinder to accommodate your preferred keying system.
• Field reversible to suit either door handing without additional parts.
• 06 lever with N escutcheon trim for a clean, modern appearance.
• Satin chrome (626) finish offers lasting corrosion resistance and a refined look.

Functional Details

The corridor with deadbolt function keeps the latchbolt retracted by the lever from either side under normal use, while the deadbolt can be independently thrown and retracted for controlled security at the opening.

• Latchbolt by lever either side unless deadbolt is thrown.
• Deadbolt projected or retracted by key outside or turn unit inside.
• When deadbolt is thrown, inside lever retracts both deadbolt and latchbolt simultaneously for safe egress.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This order includes the L9000 mortise lock body with corridor/deadbolt function, the 06 lever with N escutcheon trim, and standard mounting hardware. A cylinder is not included and must be ordered separately.
