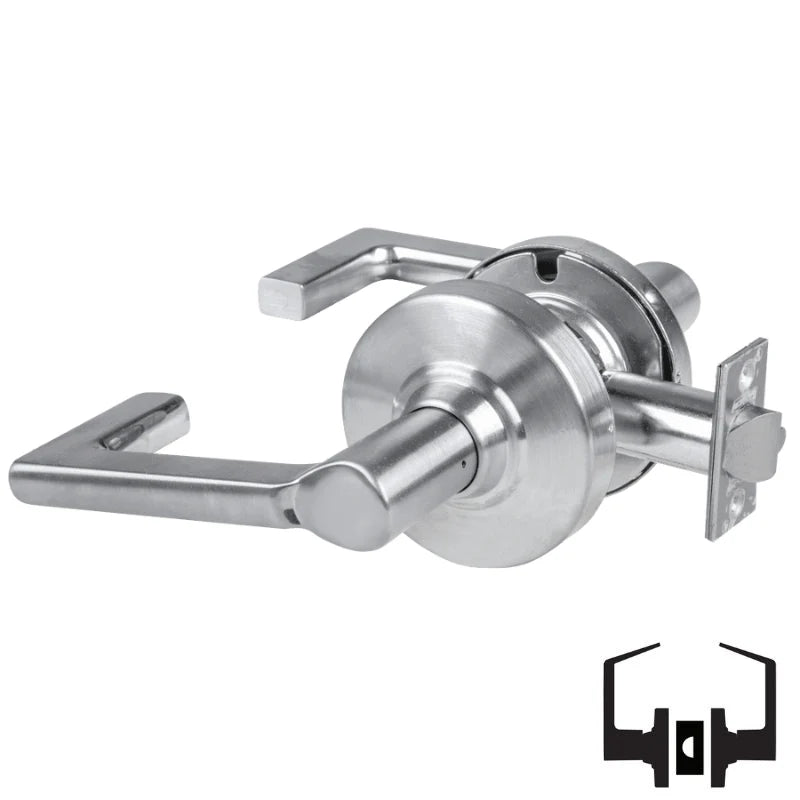

Schlage ND10S-LON 626 passage lever set, satin chrome, Longitude lever with cylindrical rose and latch
Schlage ND10S-LON 626 passage lever set, satin chrome, Longitude lever with cylindrical rose and latch
Schlage ND10S-LON passage latch cylindrical lever set, non-keyed Longitude lever, inside view diagram
Schlage Longitude LON cylindrical passage lever trim, straight return lever with round rose, dimensioned drawing
Schlage ND10S-LON 625 passage lever set, satin chrome cylindrical lock with Longitude levers and round rose
Schlage ND10S-LON 605 passage lever set, bright brass finish, Longitude lever with cylindrical latch
Schlage ND10S-LON 606 passage lever set, satin brass cylindrical lock with Longitude levers and round rose
Schlage ND10S-LON 612 cylindrical passage set, satin bronze Longitude lever with round rose, non-keyed
Schlage ND10S-LON 613 cylindrical passage set, oil-rubbed bronze Longitude lever with round rose, non-keyed
Schlage ND10S-LON 619 cylindrical passage set, satin nickel, Longitude lever with round rose and latch
Schlage ND10S-LON 626AM cylindrical passage set, satin chrome Longitude lever with round rose and latch
Schlage ND10S-LON 643E cylindrical passage set, dark bronze Longitude lever with round rose, non-keyed
Schlage ND10S-LON 622 passage lever set, matte black cylindrical lock with Longitude levers and latch
Zoomed view
All SCHLAGE Products

Schlage ND10S-LON Cylindrical Passage Set, Longitude Lever, Non-Keyed

  • SKU: ND10SLON626
  • ✓
    Available (4‑6 Weeks)
    4-6 Weeks Lead Time
Your Price
Finish: US26D-626 Satin Chrome

Schlage ND10S-LON Cylindrical Passage Set, Longitude Lever, Non-Keyed, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non-Handed

The Schlage ND10S-LON cylindrical passage set is a heavy-duty Grade 1 lock built for high-traffic commercial openings where dependable latching and free egress are essential. Featuring the Longitude lever design and a non-keyed passage function, this ND Series lock is ideal for doors that do not require locking but still demand long-term durability and consistent performance. Its non-handed construction helps simplify ordering and installation, while the 2-3/4 inch backset and 4-7/8 inch strike support common commercial door preparations. Designed to meet rigorous ANSI and UL standards, this lockset is a strong choice for schools, offices, healthcare, and institutional applications.

Features

  • ND Series Grade 1 cylindrical lock is engineered for demanding commercial and institutional environments.
  • Passage function provides latch operation without key locking for interior doors requiring unrestricted access.
  • Non-handed design allows installation on either right-hand or left-hand doors.
  • Longitude lever trim offers a modern lever style suitable for a wide range of commercial interiors.
  • Built to meet ANSI/BHMA A156.2 Series 4000 Grade 1 requirements for strength and durability.

Functional Details

The ND10S passage function is designed for doors that need positive latching without a keyed lock. Both levers remain unlocked for free operation from either side, making this function well suited for hallways, closets, utility rooms, and other interior openings where security is not required.

Included Components

This lock is supplied as part of the Schlage ND Series cylindrical lock platform with lever trim, latch, and strike components for standard commercial installation based on the specified backset and strike size.

Manufacturer Schlage
SKU ND-10S-LON
Series ND Series
Lock Type Cylindrical Lock
Function Passage
Lever Design Longitude
Grade ANSI/BHMA A156.2 Series 4000, Grade 1
Handing Non-handed
Origin Made in the U.S.A.
Unit of Measure Each
UL Listing Type UL listed for 3-hour fire door
ANSI Number F75
BAA Qualified Yes
Limited Warranty 10-year limited mechanical warranty and 3-year limited electro-mechanical warranty
Backset 2-3/4 in.
Strike Size 4-7/8 in.
Door Thickness Range 1-3/8 in. to 2-1/8 in.
Cross Bore 2-1/8 in.
Edge Bore 1 in.
Latch Front 1-1/8 in. x 2-1/4 in.
Strike Dimension 1-1/4 in. x 4-7/8 in.
Latch Throw 1/2 in.
Fire Rating 3 hours
Cycle Testing 3,100,000 cycles
Lever Torque Resistance 3,600 in-lb minimum
Latch Bolt Material Stainless steel
