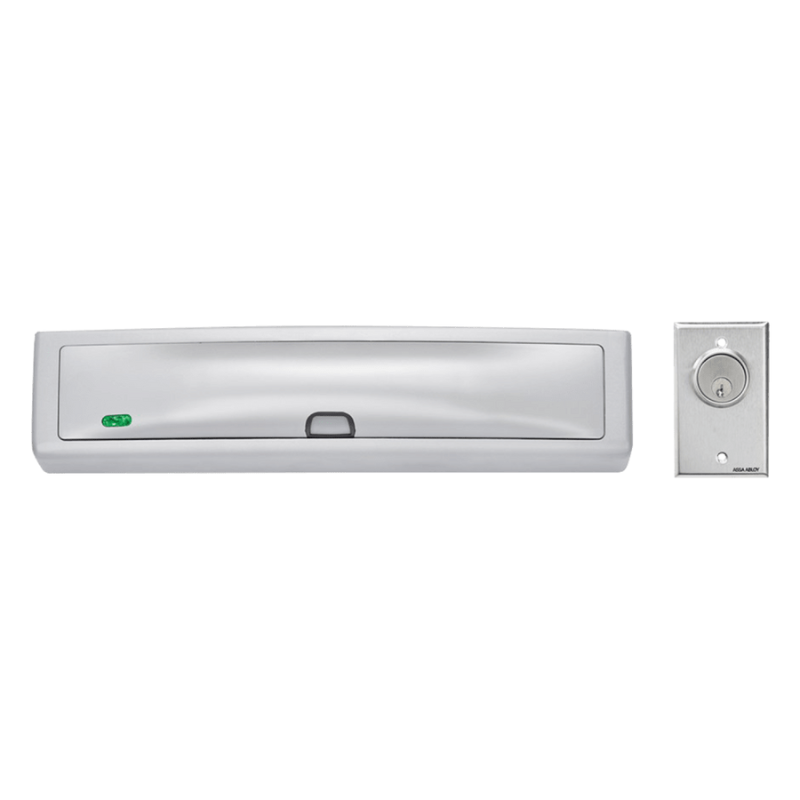

Securitron DEM680E-CH Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force, Chicago-Required Timings

  • SKU: DEM680ECH628
Securitron DEM680E-CH-630
Securitron DEM680E-CH-630
Securitron DEM680E-CH-628
Zoomed view
All SECURITRON Products

Securitron DEM680E-CH Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force, Chicago-Required Timings

  • SKU: DEM680ECH628
  • ✓
    In Stock
    In Stock
Your Price
$1,198.80/ea
0% Net 30 Days: Apply Now
Finish: US28-628 Satin Aluminum

Securitron DEM680E-CH Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force, Magnetic Bond Sensor with Door Position Switch, 12/24VDC, Chicago-Required Timings

The Securitron DEM680E-CH Delayed Egress EcoMag Maglock features a 1200 lbs. holding force and a magnetic bond sensor with door position switch. Designed for use in Chicago, this lock maintains the required timings and operates with 12/24VDC power.
DEM680E-CH: Chicago-required 15s exit delay, 1s nuisance delay, and 0s bypass time

Securitron DEM680E Maglock Features:

  • Autosensing dual voltage with microprocessor technology – no field adjustment required
  • Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
  • Instant release circuit – no residual magnetism
  • Easily visible LEDs indicate status on secure side of door
  • Fully integrated delay and detection features for fast installation of delayed egress system
  • Auto calibrated door movement detection up to 1/4" [6.35mm]
  • Alarm strobe indicates countdown; stays illuminated post alarm until reset
  • Size optimized to work with door closers
  • External alarm relay isolated dry contact (1 A at 24 VDC)
Manufacturer  Securitron
SKU DEM680E-CH
Unit of Measure Each
Installation Commercial
Grade Grade 2
Limited Warranty Lifetime
Fire Rating 1 Hour {C}
UL Listing UL 294 Listed, UL 10C Fire Rated 1 Hour
Application Supports HUGS Infant Protection
Fire Rated Yes
Operating Voltage 12/24 VDC
Holding Force 1200 lbs.
Lights LED
Switch Type  Magnetic Bond Sensor, Door Position Switch
AMP Draw 95mA to 575mA at 12VDC, 65mA to 315mA at 24VDC
