Securitron DEM680E Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force

  • SKU: DEM680E628
Securitron_DEM680E-630
Securitron_DEM680E-628
Securitron_DEM680E-612
Securitron_DEM680E-629
Securitron_DEM680E-BSP
Securitron_DEM680E-630
Securitron_DEM680E-628
Securitron_DEM680E-612
Securitron_DEM680E-629
Securitron_DEM680E-BSP
All SECURITRON Products

Securitron DEM680E Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force

  • SKU: DEM680E628
$1,105.58/ea
In Stock
In Stock
Finish: US28-628 Satin Aluminum

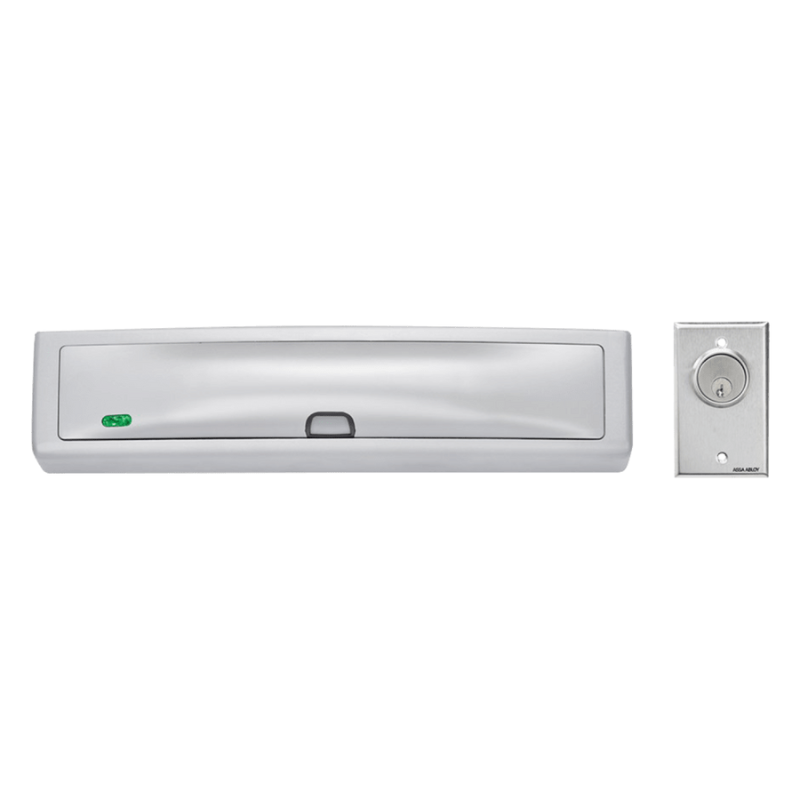

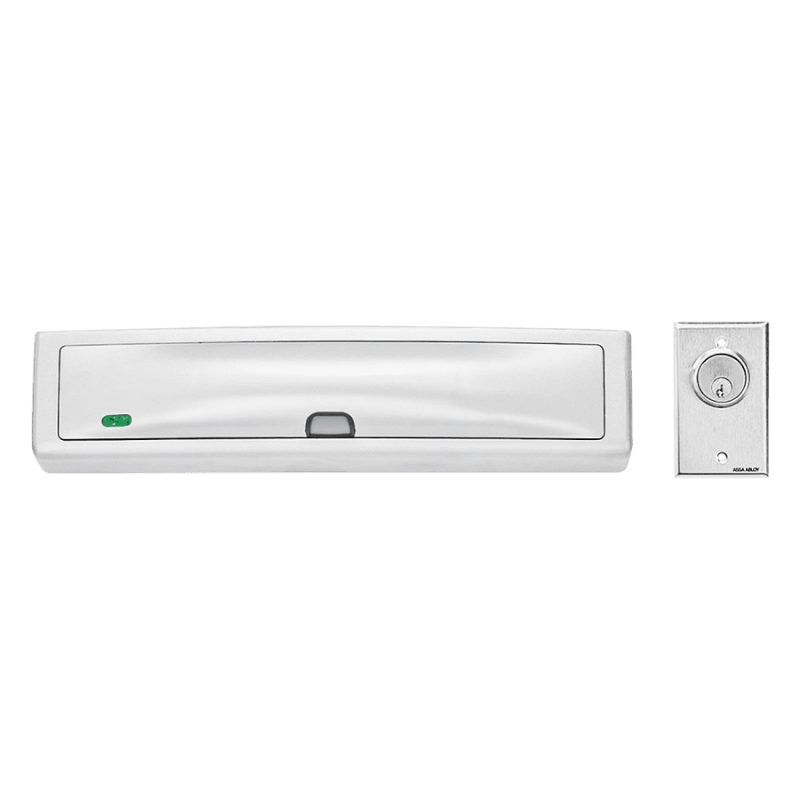

Securitron DEM680E Delayed Egress EcoMag Maglock, 1200 lbs. Holding Force, Magnetic Bond Sensor with Door Position Switch, 12/24VDC, Supports HUGS Infant Protection Timings

The Securitron DEM680E Delayed Egress EcoMag Maglock boasts an impressive 1200 lbs. holding force and is equipped with a magnetic bond sensor and door position switch. This high-quality maglock operates at 12/24VDC and supports various HUGS infant protection timings.

Securitron DEM680E Maglock Features:

  • Autosensing dual voltage with microprocessor technology – no field adjustment required
  • Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
  • Instant release circuit – no residual magnetism
  • Easily visible LEDs indicate status on secure side of door
  • Fully integrated delay and detection features for fast installation of delayed egress system
  • Auto calibrated door movement detection up to 1/4" [6.35mm]
  • Alarm strobe indicates countdown; stays illuminated post alarm until reset
  • Size optimized to work with door closers
  • External alarm relay isolated dry contact (1 A at 24 VDC)
Manufacturer  Securitron
SKU DEM680E
Unit of Measure Each
Installation Commercial
Grade Grade 2
Limited Warranty Lifetime
Fire Rating 1 Hour {C}
UL Listing UL 294 Listed, UL 10C Fire Rated 1 Hour
Application Supports HUGS Infant Protection
Fire Rated Yes
Operating Voltage 12/24 VDC
Holding Force 1200 lbs.
Lights LED
Switch Type  Magnetic Bond Sensor, Door Position Switch
AMP Draw 95mA to 575mA at 12VDC, 65mA to 315mA at 24VDC
Product Cut Sheet
