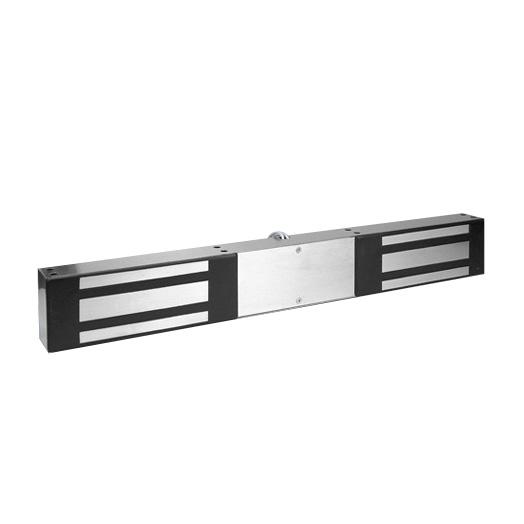

The Securitron DM62B Magnalock with BondSTAT Magnetic Bond Sensors is for double doors without a center mullion, the DM62 supplies two models 62 Magnalocks in a single, brushed stainless steel housing. The Securitron DM62 Magnalock has a 1200 lbs. holding force per maglock. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.

*The DM62 Mangalock requires 2.5 inches on a flat mounting space.

The DM62 is a strong, easy-to-maintain solution for interior, perimeter, and exterior access control. With unsurpassed durability, the DM62 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete-filled metal, wood, or glass with aluminum frames, and Herculite doors.

BondSTAT, the next generation of electromagnetic lock monitoring technology from Securitron. Unlike typical door position switches that indicate whether or not a door is closed, BondSTAT also notifies your access control or alarm system that the door is accurately secured. BondSTAT"s magnetic field monitors the entire surface of the armature, not just the center or corner. Any variation in the armature's position beyond established installation parameters will initiate a signal indicating the Magnalock is not generating full holding potential. BondSTAT delivers superior Magnalock monitoring capability for unparalleled security and peace of mind.

Securitron DM62 Magnalock Features:

• Patented instant release circuit - no residual magnetism
• BondSTAT magnetic bond sensor
• Both locks can be controlled as one or individually
• Surface mounts easily with minimal tools
• Fully sealed electronics - tamper proof and weatherproof
• Mounted using steel machine screws into blind finishing nuts
• Architectural brushed stainless steel finish (US32D/630)
• All ferrous metal surfaces plated to MIL specification
• Eighteen inches [45.7cm] of jacketed, stranded conductor for each lock
• Automatic dual voltage - no field adjustment required

Securitron DM62B Magnalock Specifications:

Securitron DM62B Magnalock Certifications:
