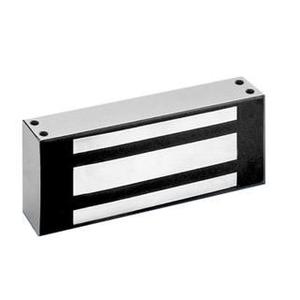

Securitron M62FG Maglock 1200lb Holding Force, Fire Rated, Face Mount with Universal Conduit Fitting, Voltage 12VDC/24VDC, US32D Satin Stainless Steel

  • SKU: M62FG

Securitron M62FG Maglock 1200lb Holding Force, Fire Rated, Face Mount with Universal Conduit Fitting, Voltage 12VDC/24VDC, US32D Satin Stainless Steel

  • SKU: M62FG
Sale price$423.34/ea
In Stock
In Stock

Securitron M62FG Maglock, 1200lb Holding Force, Fire Rated 3 Hours, Face Mount with Universal Conduit Fitting, Operating Voltage 12VDC/24VDC, 630/US32D, Satin Stainless Steel


The Securitron M62FG Magnalock has a 1200 lbs. holding force Magnalock with automatic dual voltage. Recommended for exterior and perimeter doors through which criminals could gain entrance to cause substantial economic loss.

The M62FG is a strong, easy-to-maintain solution for interior, perimeter, and exterior access control. With unsurpassed durability, the M62FG will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete-filled metal, wood, or glass with aluminum frames, and Herculite doors.


Securitron M62FG Magnalock Features:

  • Patented instant release circuit - no residual magnetism
  • Fully sealed electronics - tamper proof and weatherproof
  • Surface mounts easily with minimal tools
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening
  • Dress Covers available
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage - no field adjustment required
  • Universal threaded conduit fitting is 1/2" female - 3/4" male
  • Split Strike Plates and Offset Strike Plates available
  • UL Listed

Securitron M62FG Magnalock Specifications:

Holding Force: 1200 lbs. [544 kg]
Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC
Operating Temperature: -40 to +140F [-40 to +60C]
Warranty: MagnaCare Lifetime Replacement Warranty

Securitron M62FG Magnalock Certifications:

Fire Rated:

UL 10C Listed
