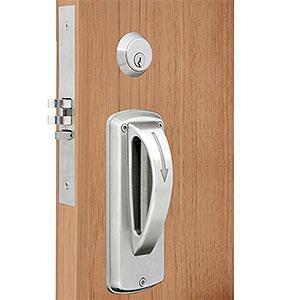

The MRX-A series Mortise Lockset with Ligature Resistant Arch Trim is designed for facilities housing patients and individuals at risk
MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
An integral part of the Health/Safety and Accident Prevention programs
5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left or perpendicular to the surface of the door)
Variety of mortise functions available to fit unique security and safety requirements
Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
UL & ULC Listed 3-Hour Fire Rating
Non-Keyed
Field Reversible
Style: Arch Trim
Function: Passage/Closet (01)
Trim: with Arch Levered
Finish: Satin Stainless Steel (US32D)
Specifications
Door Thickness: 1-3/4" Standard Backset: 2-3/4" Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2" Arch Lever: Stainless Steel Faceplate: Stainless Steel, 1-1/4" x8" Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8" Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder Small Format IC: Available with or without core, 6 or 7pin core Schlage Large Format IC: Available in less core Corbin Large Format IC: Available in less core, for 6pin core Warranty: 10 Year Limited Finish: Satin Stainless Steel(630/US32D)
Certifications
UL:
UL 10C listed a 3-hour rating
ANSI:
A156.13-2012 Grade 1 Certified
BAA:
Meets requirements of the Buy American Act
ADA:
Meets requirements of the Americans with Disabilities Act
OMH:
Accepted by New York State Office of Mental Health Patient Safety Standard
