Description

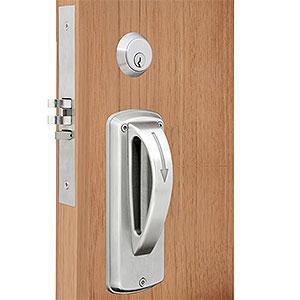

TownSteel MRX-A-13-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Dormitory Or Exit Lock Function, Schlage "C'" Keyway, Keyed Random, [2] Keys, ANSI, Grade 1, US32D Satin Stainless Steel
TownSteel's MRX-A-13-630 mortise lockset delivers institutional-grade security with ligature-resistant engineering designed for dormitories and emergency exits. This Grade 1 ANSI-certified lock features a robust five-point locking mechanism and arch trim styling in US32D satin stainless steel. The Schlage C keyway accommodates random keying with two keys included. Built for high-traffic environments where safety and durability are non-negotiable, this heavy-duty mortise lock combines reliable performance with specialized security considerations for sensitive applications.
TOWN STEEL MRX-A-13-630 Features
- The MRX-A series Mortise Lockset with Ligature Resistant Arch Trim is designed for facilities housing patients and individuals at risk
- MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
- An integral part of the Health/Safety and Accident Prevention programs
- 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left, or perpendicular to the surface of the door)
- High-quality stainless steel components
- Tamper-resistant security stainless steel mounting screws
- Horizontal or vertical trim mounting
- Variety of mortise functions available to fit unique security and safety requirements
- Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
- UL & ULC Listed 3-Hour Fire Rating
- Non-Keyed
- Field Reversible
- Style: Arch Trim
- Function: Passage/Closet (01)
- Trim: with Arch Levered
- Finish: Satin Stainless Steel (US32D)
Specifications
Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder
Small Format IC: Available with or without core, 6 or 7pin core
Schlage Large Format IC: Available in less core
Corbin Large Format IC: Available in less core, for 6pin core
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
Certifications
| UL: | UL 10C listed a 3-hour rating |
| ANSI: | A156.13-2012 Grade 1 Certified |
| BAA: | Meets requirements of the Buy American Act |
| ADA: | Meets requirements of the Americans with Disabilities Act |
| OMH: | Accepted by New York State Office of Mental Health Patient Safety Standard |
Document Center
Handing Chart
