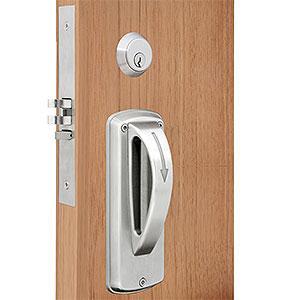

TownSteel MRX-A-15-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Hotel Or Guest Function, Keyed, Customer Muct Provide Their Own Cylinder, ANSI, Grade 1, US32D Satin Stainless Steel

TownSteel's MRX-A-15-630 mortise lockset delivers institutional-grade security with ligature-resistant engineering designed for high-risk environments. This Grade 1 ANSI-certified lock features a robust 5-point locking mechanism and arch trim configuration, ideal for hotel and guest applications requiring enhanced safety protocols. The US32D satin stainless steel finish resists corrosion while maintaining a professional appearance. Compatible with Schlage C core cylinders (customer-supplied), this heavy-duty mortise lock combines durability with specialized safety features for demanding commercial installations.

TOWN STEEL MRX-A-15-630 Features

• The MRX-A series Mortise Lockset with Ligature Resistant Arch Lever Trim is designed for facilities housing patients and individuals at risk
• MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
• An integral part of the Health/Safety and Accident Prevention programs
• 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left, or perpendicular to the surface of the door)
• High-quality stainless steel components
• Tamper-resistant security stainless steel mounting screws
• Horizontal or vertical trim mounting
• Variety of mortise functions available to fit unique security and safety requirements
• Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
• UL & ULC Listed 3-Hour Fire Rating
• Non-Keyed
• Field Reversible
• Style: Arch Trim
• Function: Passage/Closet (01)
• Trim: with Arch Levered
• Finish: Satin Stainless Steel (US32D)

Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder
Small Format IC: Available with or without core, 6 or 7pin core
Schlage Large Format IC: Available in less core
Corbin Large Format IC: Available in less core, for 6pin core
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
