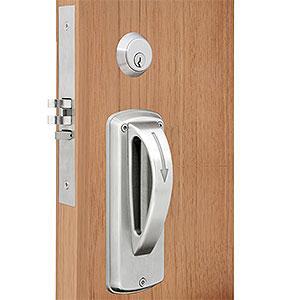

TownSteel MRX-A-26-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Institutional Privacy-Bathroom Function, Schlage "C" Keyway, Keyed Random, [2] Keys, ANSI, Grade, US32D Satin Stainless Steel

TownSteel's MRX-A-26-630 mortise lockset delivers institutional-grade security with ligature-resistant engineering designed for high-security environments. This privacy lock features a five-point locking mechanism, Schlage C keyway compatibility, and satin stainless steel construction (US32D finish) for durability in demanding applications. The arch trim design complements modern architectural aesthetics while maintaining ANSI compliance. Includes two randomly keyed keys and is engineered to meet rigorous institutional standards for controlled access areas.

TOWN STEEL MRX-A-26-630 Features

• The MRX-A series Mortise Lockset with Ligature Resistant Arch Lever Trim is designed for facilities housing patients and individuals at risk
• MRX with 5-Point Ligature Resistant Arch trim for new or retrofit application
• An integral part of the Health/Safety and Accident Prevention programs
• 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left, or perpendicular to the surface of the door)
• High-quality stainless steel components
• Tamper-resistant security stainless steel mounting screws
• Horizontal or vertical trim mounting
• Variety of mortise functions available to fit unique security and safety requirements
• Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
• UL & ULC Listed 3-Hour Fire Rating
• Non-Keyed
• Field Reversible
• Style: Arch Trim
• Function: Passage/Closet (01)
• Trim: with Arch Levered
• Finish: Satin Stainless Steel (US32D)

Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
