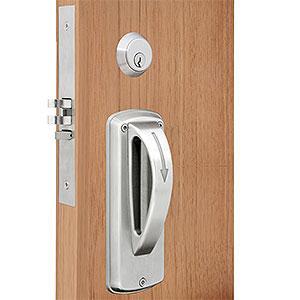

TownSteel MRX-A-33-630 5 Point Ligature Resistant Mortise Lockset With Arch Trim, Intruded Deadbolt Function, Cylinder Both Sides, Schlage "C" Keyway, Keyed Random, [2] Keys, ANSI, Grade 1, US32D Satin Stainless Steel

TownSteel's MRX-A-33-630 mortise lockset delivers institutional-grade security with ligature-resistant engineering designed for high-security applications. This Grade 1 ANSI-certified unit features a five-point locking mechanism and intruder deadbolt function, paired with a Schlage "C" cylinder for reliable key control. The satin stainless steel finish (US32D) resists corrosion in demanding environments, while the arch trim accommodates standard door preparations. Includes two random keys and operates with cylinders on both sides for maximum access control flexibility.

Features

• The MRX-A series Mortise Lockset with Ligature Resistant Arch Lever Trim is designed for facilities housing patients and individuals at risk
• MRX-A with 5-Point Ligature Resistant Arch trim for new or retrofit application
• An integral part of the Health/Safety and Accident Prevention programs
• 5 Point design: a 0.5 mm diameter wire or greater cannot be attached to the lock from any direction (up, down, horizontal right, horizontal left or perpendicular to the surface of the door)
• High-quality stainless steel components
• Tamper-resistant security stainless steel mounting screws
• Horizontal or vertical trim mounting
• Variety of mortise functions available to fit unique security and safety requirements
• Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
• UL & ULC Listed 3-Hour Fire Rating
• Non-Keyed
• Field Reversible
• Style: Arch Trim
• Function: Passage/Closet (01)
• Trim: with Arch Levered
• Finish: Satin Stainless Steel (US32D)

Door Thickness: 1-3/4" Standard
Backset: 2-3/4"
Cover Plate: Stainless Steel, 7-1/2" x 2-3/4" x 1/2"
Arch Lever: Stainless Steel
Faceplate: Stainless Steel, 1-1/4" x8"
Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8"
Mounting: Through-bolt, tamper-resistant mounting screws, for wood and metal door
Cylinder: Brass with stainless steel cover, 6pin, Schlage "C" keyway standard, 2 keys per cylinder
Small Format IC: Available with or without core, 6 or 7pin core
Schlage Large Format IC: Available in less core
Corbin Large Format IC: Available in less core, for 6pin core
Warranty: 10 Year Limited
Finish: Satin Stainless Steel(630/US32D)
