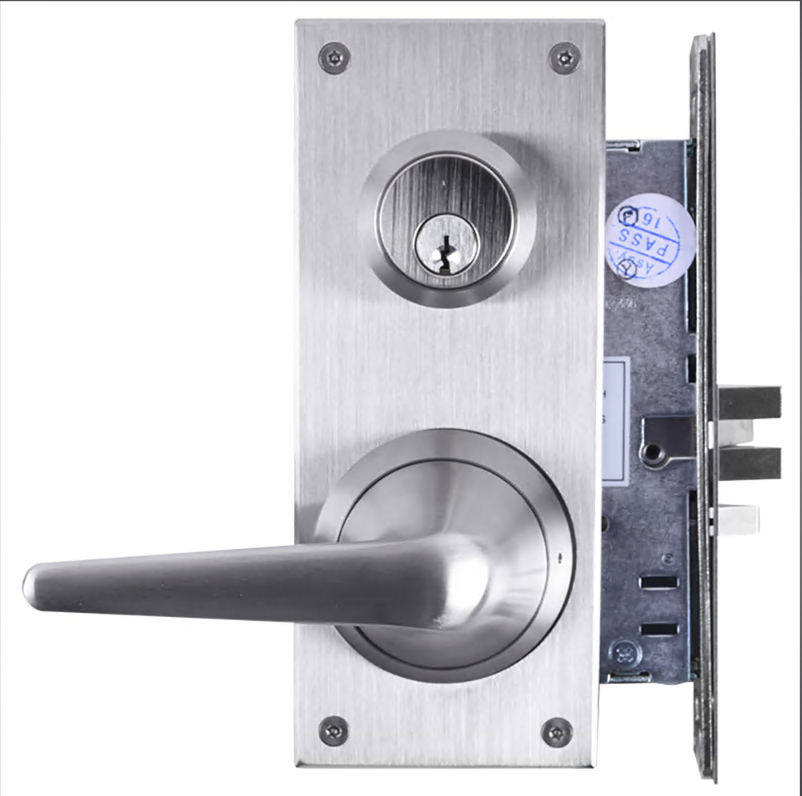

Townsteel MRX-E-L-07-630 Ligature Resistant Storeroom Mortise Lever Lockset Escutcheon Trim, Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXEL07630
Townsteel MRX-E-L-07-630
Townsteel MRX-E-L-07-630
Townsteel MRX-E-L-07
Zoomed view
All TOWNSTEEL Products

Townsteel MRX-E-L-07-630 Ligature Resistant Storeroom Mortise Lever Lockset Escutcheon Trim, Schlage C Cylinder, US32D Satin Stainless Steel

  • SKU: MRXEL07630
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$1,003.20/ea

TownSteel MRX-E-L-07-630 Ligature Resistant Mortise Lockset With Escutcheon Lever Trim, Storeroom Or Closet Function, Schlage "C'" Keyway, Keyed Random, [2] Keys, ANSI, Field Reversible, Grade 1, US32D Satin Stainless Steel

TownSteel's MRX-E-L-07-630 mortise lockset provides storeroom and closet security with ligature-resistant engineering for institutional applications. This Grade 1 lockset features a Schlage C keyway with random keying and supplies two keys for straightforward access control. The satin stainless steel escutcheon lever trim resists corrosion and maintains appearance through repeated use and cleaning cycles. Field-reversible design accommodates both left and right-hand door installations without requiring additional components. ANSI-certified performance ensures reliable operation in storage areas where security and durability are essential, delivering institutional-grade protection with minimal maintenance requirements.

ANSI Function
F07 - Storeroom/Exit
Handed Yes
Lever/Knob Design
Ligature Resistant Lever
Rose/Escutcheon Design
Escutcheon
Cylinder Type
Mortise Cylinder
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Std. Strike Type ASA
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
