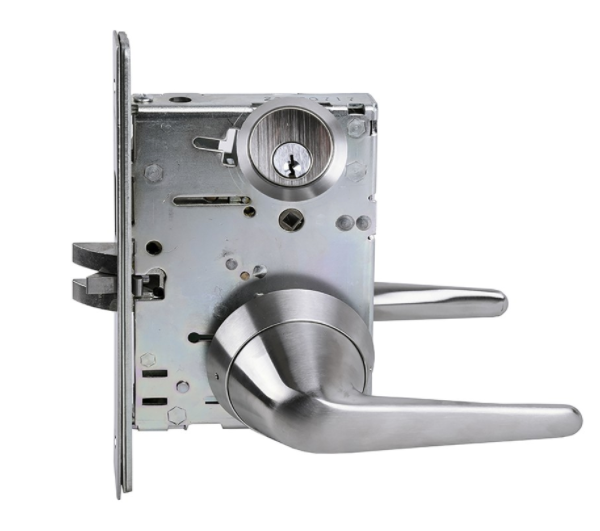

Townsteel MRX-S-L-26 Ligature Resistant Passage/Closet Mortise Lever Lockset - Sectional Trim, Schlage C Cylinder, 630/US32D Satin Stainless Steel

  • SKU: MRXSL26630
Townsteel MRX-S-L-26 Ligature Resistant Passage/Closet Mortise Lever Lockset - Sectional Trim, Schlage C Cylinder, 630/US32D Satin Stainless Steel
Townsteel MRX-S-L-26 Ligature Resistant Passage/Closet Mortise Lever Lockset - Sectional Trim, Schlage C Cylinder, 630/US32D Satin Stainless Steel
Townsteel MRX-S-L-26
Townsteel MRX-S-L-26
Townsteel MRX-S-L-26
All TOWNSTEEL Products

Townsteel MRX-S-L-26 Ligature Resistant Passage/Closet Mortise Lever Lockset - Sectional Trim, Schlage C Cylinder, 630/US32D Satin Stainless Steel

  • SKU: MRXSL26630
  • ✓
    In Stock
    In Stock
Your Price
$843.15/ea

Townsteel MRX-S-L-26 Ligature Resistant Passage/Closet Mortise Lever Lockset with Sectional Trim - 2 3/4" Backset, Schlage C Cylinder KR, 630/US32D Satin Stainless Steel Finish

Townsteel MRX-S-L-26 is a Grade 1 Heavy Duty Institutional Privacy function Ligature Resistant Mortise Lever Lockset with Sectional trim. The Townsteel MRX-S-L-26 has a 2 3/4" backset, Schlage C Cylinder KR, and comes in US32D/630 Satin Stainless Steel Finish.

Features

  • High-quality Stainless steel components
  • Meets or exceeds all performance testing of ANSI A156.13 Grade 1 mortise locks
  • An integral part of your Health/Safety and Accident Prevention programs
  • The mortise is UL listed for a 3-hour fire door
  • Clutching mortise
  • Field changeable clutching function can be activated for I/S and/or O/S levers
  • Clutching mortise with Entrance or Exit - Lever rotation would be over 50 °. When locked the O/S lever (clutching side) is free rotating in the up or down position, I/S lever rotates upward and downward
  • Variety of mortise functions available to fit your unique security and safety requirements
  • Non-Handed field reversible

Specifications

Door Thickness: 1-3/4" standard, other door thickness available when specified
Backset: 2-3/4"
Lock Case: Heavy Gauge Plated Steel
Armored Front: Wrought stainless steel or brass-adjustable angel and attached by screws to the lock case front
Latch bolt: Stainless steel
Guard bolt: Stainless steel
Stop works: Stainless steel
Strike: Stainless steel 4-7/8"X 1-1/4" curved lip ANSI strike
Handing: Non-handed, field reversible without opening chassis cover
Trim: Satin stainless steel, sectional
Cylinder: As specified
Keyway: As specified
Finishes: Satin stainless steel (630/US32D)

Certifications

ADA: Meets guidelines of the Americans with Disabilities Act
UL: Mortise case UL listed for up to 3-hour fire-rated single swing door(4'x8')
ANSI: Meets or exceeds all Grade 1 requirements of ANSI/BHMA A156.3 Series 1000
BAA: Meets guidelines of the Buy American Act
Product Cut Sheet

Cylinder Mortise Handing Chart
