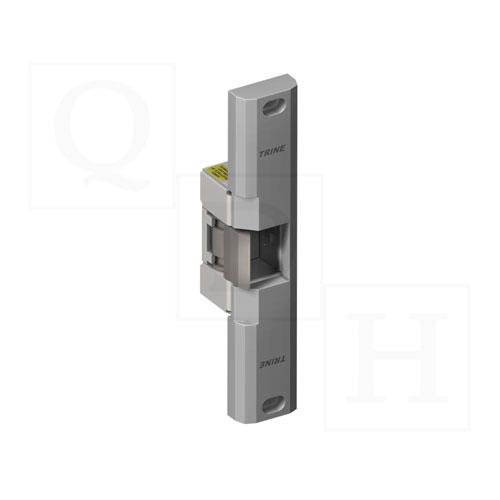

Trine EN800 Electric Strike

  • SKU: EN80012DC32D

Trine EN800 Electric Strike

  • SKU: EN80012DC32D
Sale price$430.28/ea
In Stock
In Stock
Trine Finishes: -32D, Satin Stainless Steel (630)
Trine Voltage: -12DC, 12-Volt DC (2-Orange/White)
Visa Mastercard American Express Discover Shop Pay Apple Pay

Trine 800 Electric Strike, Fail Secure (standard)
Member of the EN series US32D STAINLESS STEEL OR US10B OIL RUBBED BRONZE FINISH OPTIONS

Features:

  • For use in new or replacement installation in wood or metal single door frames
  • Semi-mortise type - Backset 1-1/4" Deep
  • Use with surface mounted rim exit device with up to 1" throw
  • Fail secure/Failsafe: field reversible on DC units
  • Mounting and mechanism holes permit horizontal adjustment for ease of installation
  • 45 º faceplate ramp
  • EN800 Features:

    • Superior Strength -- 2,000+ lbs UL ® tested.
    • Superior Life -- Durability of 1,000,000+ life cycles
    • Superior Application - Outdoor UL ® rating allows the strike to be used anywhere - especially good for gates.
    • For a version that can be used with a Gatebox and mounted anywhere.
    • Fail secure/Fail safe field reversible on DC units.
    • Grade 1 Strike -- Contains a one-piece locking mechanism with one Solenoid -- fewer parts mean fewer problems.
    • Left and Right handing is field reversible.
    • You go anywhere strike!

    Specifications:

    • UL ® Listed 1034 - Indoor/Outdoor Burglary Resistant
    • UL294 (6th Edition) listed
    • BHMA 156.31 2001, Grade 1
    • NYC MEA 79-01-E
    • Not Fire Rated

    EN Series Electrical Characteristics: PoE Freindly

    Volts Current Ohms (Ω) Duty Sound Wire
    12AC 0.700 4.5 Intm. Buzz 1-Blue,
    1-Orange/White
    24AC 0.370 18.0 Intm. Buzz 1-Blue,
    1-Black/White
    12DC 0.280 43.0 Intm./Cont. Silent 2-Orange/White
    24DC 0.150 164.0 Intm./Cont. Silent 2-Black/White

    EN800 Available Finishes

    EN800-32D -- Satin Stainless Steel - BHMA630 EN800-10B -- Dark Bronze - BHMA613
    EN800-US3 -- Bright Brass -- BHMA605 EN800-US4 -- Satin Brass -- BHMA606
    EN800-10 -- Satin Bronze -- BHMA612 EN800-32 -- Polished Chrome -- BHMA629
