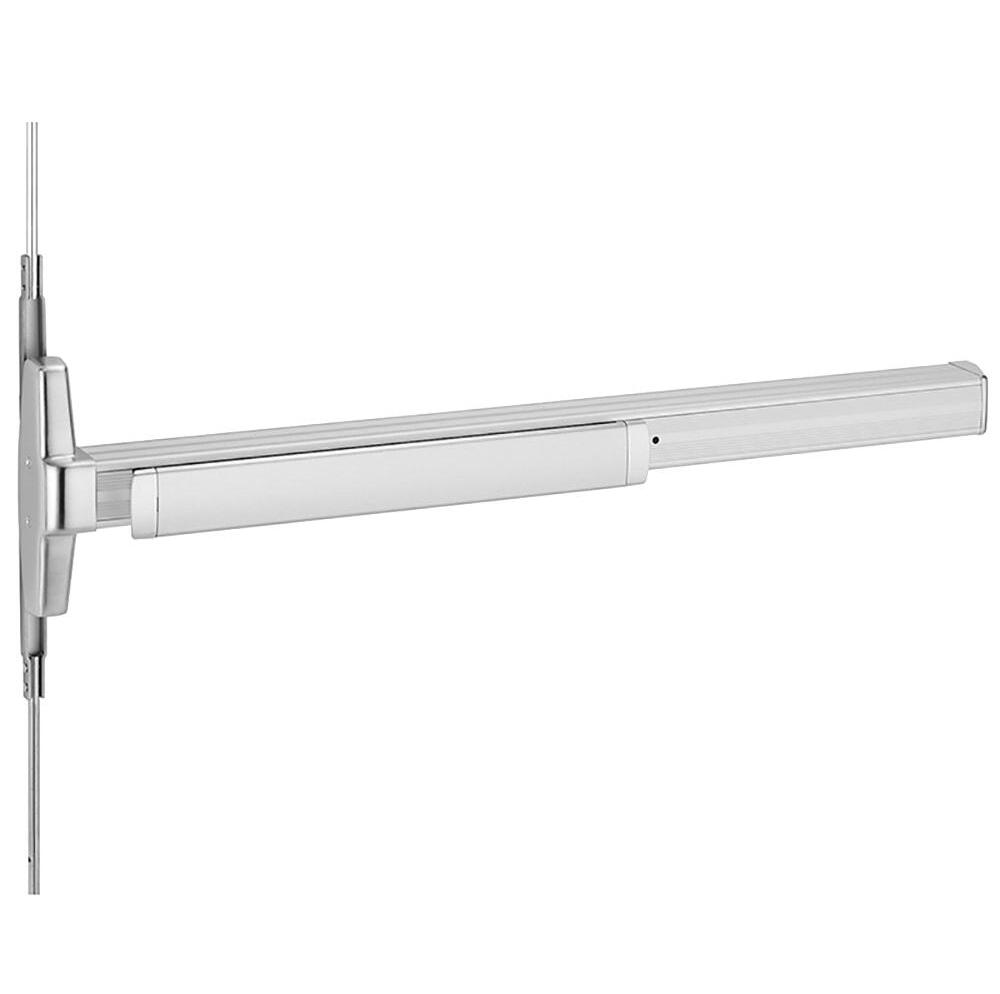

Von Duprin 3347AEO-4 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, For 34"-48" Door Width, For 84" Door Height, Hex Key Dogging, Grade 1, Non Handed
The Von Duprin 3347AEO-4 Concealed Vertical Rod Exit Device is a Grade 1, UL-listed panic exit solution engineered for secure and code-compliant egress on commercial doors. Featuring a concealed vertical rod design with a narrow stile pushpad, this exit-only device provides reliable top and bottom latching while maintaining a clean, architectural appearance. It is UL 305 listed and ANSI/BHMA A156.3 Grade 1 certified, making it ideal for high-traffic applications on 34"–48" wide doors with an 84" door height. The non-handed construction simplifies installation on single or double doors, while hex key dogging allows the device to be held open during normal business hours. Built for durability and smooth operation, the Von Duprin 3347AEO-4 is a trusted choice for commercial and institutional exit hardware applications.
Features
- Concealed vertical rod exit device for secure, code-compliant egress
- UL 305 listed and ANSI/BHMA A156.3 Grade 1 certified for heavy-duty use
- Non-handed design for simplified installation on single or double doors
- Grooved mechanism case with one-piece center cover for durability
- Narrow stile compatible, fitting metal stiles as small as 2-1/8" and wood stiles as small as 4"
