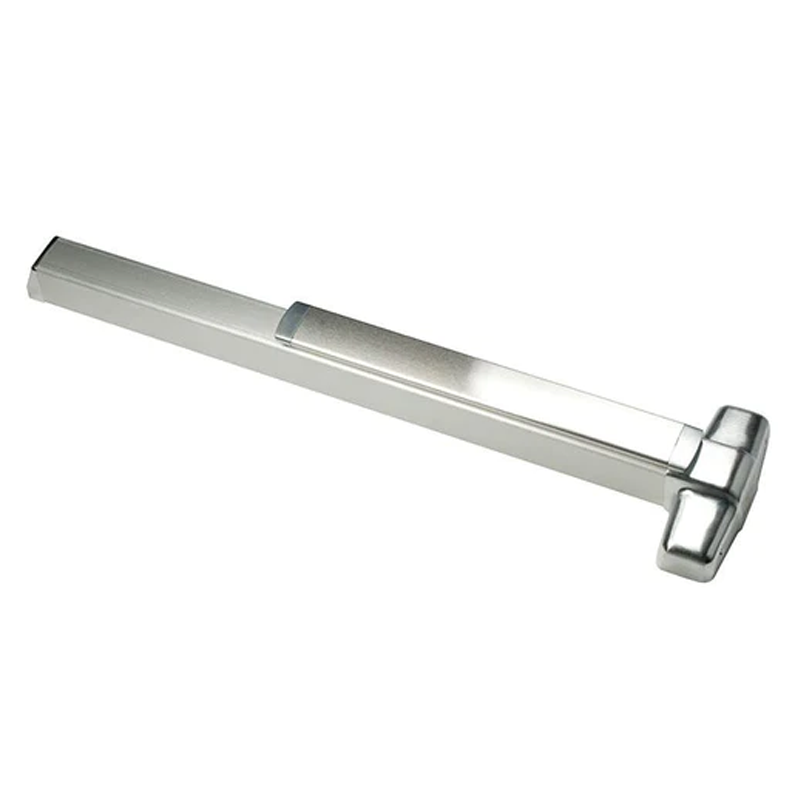

Von Duprin 9847EO-F 3 26D Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 80" to 100" Door Height, Exit Only, Less Dogging, US26D/626 Satin Chrome Finish, Field Reversible

VON DUPRINSKU: 9847EOF326D

Price:
Sale price$2,311.40/ea
In Stock

Related Hardware

Von Duprin 9847EO-F 3 26D Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36" Fire-rated Device, 80" to 100" Door Height, Exit Only, Less Dogging, US26D/626 Satin Chrome Finish, Field Reversible



Technical Specs
Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Exit Only, Accepts Various Trim
Device Length 36"
Hand Field Reversible
Dogging Options Less Dogging
Top Strike 338
Strike Bottom 385A
Includes Trim No
Trim Type Less trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-11/16"
Door Material Hollow Metal
Door Width 28" to 36"
Door Height 80" to 100"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Concealed Vertical Rod Exit Devices



9847 Series Concealed Vertical Rod Exit Device

The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
  • Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut: 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Panic Handing Chart
