Description

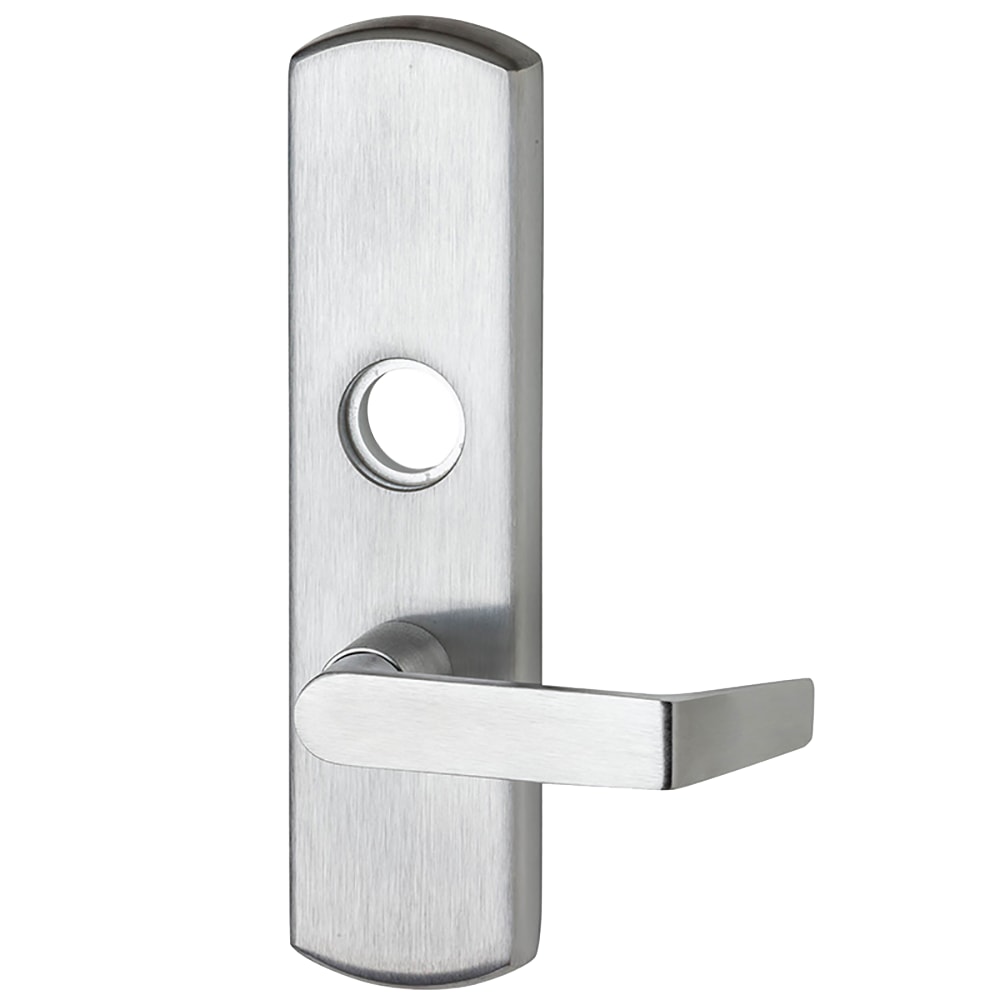

Von Duprin Exit Device Trims for the 98/99 Series Exit Devices
Von Duprin 996L-06-RV Exit Device Trim
Von Duprin 996L-06-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 06 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-06-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Classroom Function: Key locks and unlocks
- ANSI Function: 08
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-06-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 06 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Classroom |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-03-RV
Von Duprin 996L-03-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 03 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-03-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Classroom Function: Key locks and unlocks
- ANSI Function: 08
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-03-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 03 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Classroom |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-07-RV
Von Duprin 996L-07-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 07 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-07-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Classroom Function: Key locks and unlocks
- ANSI Function: 08
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-07-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 07 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Classroom |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-NL-06-RV
Von Duprin 996L-NL-06-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 06 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-06-RV is a Night Latch function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Night Latch Function: Key retracts latch bolt
- ANSI Function: 03
-
Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-NL-06-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 06 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Night Latch |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-NL-03-RV
Von Duprin 996L-NL-03-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 03 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-NL-03-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Night Latch Function: Key retracts latch bolt
- ANSI Function: 03
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-NL-03-RV |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 03 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Night Latch |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-NL-07-RV
Von Duprin 996L-NL-07-RV Exit Device Trim For 98/99 Series Exit Devices, Night Latch Function, 07 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-NL-07-RV is a classroom function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Night Latch Function: Key retracts latch bolt
- ANSI Function: 03
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-NL-07-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 07 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Night Latch |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 996L-NL-17-RV
Von Duprin 996L-NL-17-RV Exit Device Trim For 98/99 Series Exit Devices, Classroom Function, 17 Lever Style, Escutcheon plate With Rim/Vertical Rod Prep, Less Cylinder
The Von Duprin 996L-NL-17-RV is a Night Latch function exit device trim for the 98/99 Series rim and vertical rod exit devices. SOLD LESS CYLINDER.
- Night Latch Function: Key retracts latch bolt
- ANSI Function: 03
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Cylinder Type: Rim Cylinder
- Handed/Field Reversible
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-NL-17-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Design A | 17 Lever |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Night Latch |
| Hand | LHR or RHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Cylinder Included | No |
| Cylinder Type | Rim |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Von Duprin 990DT
Von Duprin 990DT Dummy Escutcheon Pull Trim For 98/99 Series Exit Devices, Non Handed
- Dummy Trim - Pull when dogged
- Pull Center to Center: 5 1/2" (140mm)
- Projection 2" (51mm)
- No Cylinder'
- ANSI Function: 02
Product Specs
| Manufacturer | Von Duprin |
| SKU | 990DT |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Base Material | Brass or Bronze |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Dummy |
| Hand | Non-Handed |
| Includes Trim | Yes |
| Trim Type | Pull |
| Trim Design | Escutcheon Pull |
| Fire Rated | No |
| Product Type | Exit Device Trim |
Von Duprin 990NL-RV
Von Duprin 990NL-RV Night Latch Escutcheon Pull Trim For 98/99 Series Rim/Vertical Rod Exit Devices, Non-Handed, SOLD LESS CYLINDER
- Night Latch Function: Key Retracts Latch Bolt
- ANSI Function: 03
- Escutcheon plate size: 3" x 14 3⁄16" x 3⁄32" (76 x 360 x 2mm)
- Pull Center to Center: 5 1⁄2" (140mm)
- Projection: 2" (51mm)
- Cylinder Type: Rim Cylinder
Product Specs
| Manufacturer | Von Duprin |
| SKU | 990NL-R/V |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Base Material | Brass or Bronze |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Night Latch |
| Hand | Non-Handed |
| Includes Trim | Yes |
| Trim Type | Pull |
| Trim Design | Escutcheon Pull |
| Cylinder Type | Rim |
| Fire Rated | No |
| Product Type | Exit Device Trim |
