Description

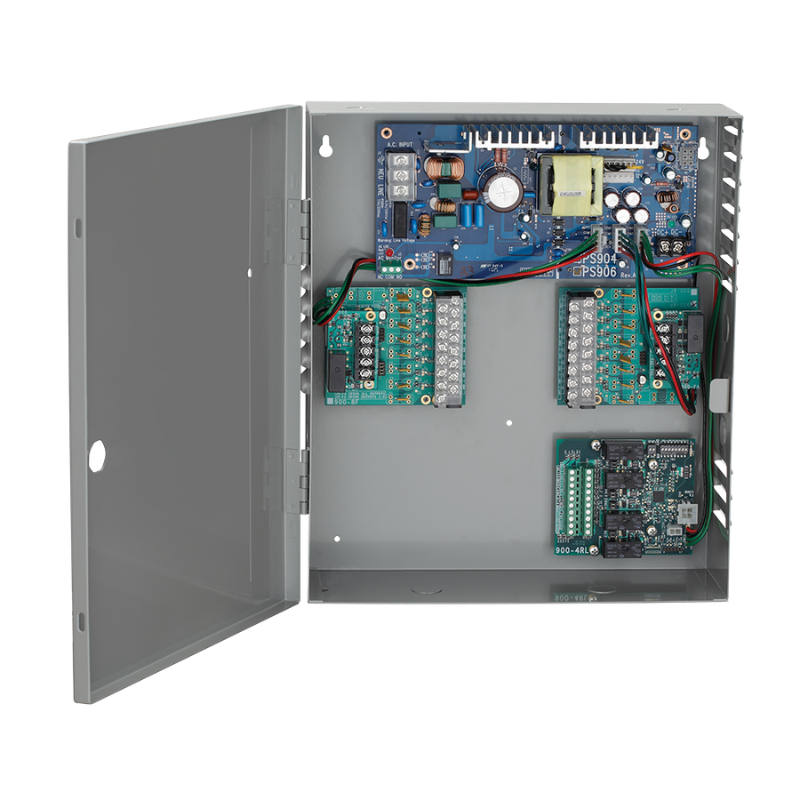

Von Duprin PS906-4RL-BBK Base Power Supply, 6A @ 12/24 VDC Field Selectable, 4 Relay Board Integrated Logic for Controlling Security Interlocks, Battery Backup Kit, Includes Two 7A/hour Batteries
The Von Duprin PS906-4RL-BBK Power Supply delivers a reliable 6 amp regulated output with field-selectable 12/24VDC operation and includes a factory-installed 900-4RL logic relay board along with the 900-BBK battery backup kit featuring two 7Ah batteries. Designed for advanced access control systems, the integrated logic board supports time delays, security interlocks, and auto-operator coordination, making it ideal for electrified panic devices, electric strikes, magnetic locks, and electrified trim in commercial facilities. The built-in battery backup ensures continued operation during power outages, while universal 120–240VAC input, overload protection, LED status indicators, and a secure hinged enclosure provide dependable performance. UL 294 and ULC-S318 listed, the PS906-4RL-BBK is a centralized, life-safety compliant power solution for healthcare, education, government, and high-security environments.
Features
- Constant output rating at both 12VDC or 24VDC provides superior performance; includes field selectable jumper
- Flat mounting of option boards provides easier access to terminal blocks for connection of electrified devices
- High voltage protective cover
- Battery back-up board auto-selects voltage
- Fire alarm relay can be configured to provide either switched or un-switched outputs from a power supply
- PS914 designed with high inrush current for powering electrified panic devices
- Universal 120-240 VAC input
- Low voltage DC, regulated and filtered
- Electronic power limiting foldback circuit for AC current overload protection
- Fused primary input
- AC status monitor- isolated SPDT contacts
- AC input and DC output LED status indicators
- Cover mounted AC input indication
- Hinged cover with lock down screws
- Optional keylock sold separately
- UL 294, ULC-S318, RoHS, and FCC Part 15 certified
Option Boards
| 900-4R | 4 relay controlled output board to power multiple devices |
| 900-4RL | 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock |
| 900-8F | Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection |
| 900-8P | 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2) |
| 900-FA | Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency |
| 900-BB | Battery backup |
| 900-2RS | 2 relay control board for electric latch panic devices (EL or QEL), electric strikes or electrified trim |
| 900-BBK | Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load |
Product Specifications
| Manufacturer | Von Duprin |
| SKU | PS906-4RL-BBK |
| Grade | Grade 1 |
| Transformer Type | DC |
| Unit of Measure |
Each |
| Installation |
Commercial |
Technical Specifications
| Output Volts | 12/24 V |
| Fire Alarm Relay | No |
| Modular Options | Yes |
| Transformer Type | DC |
| Transformer Output | Up to 5 Amps |
| Product Type | Power Supplies |
| Battery Backup | Yes |
| AC primary | T6.3A, 250VAC, 5 x 20mm |
| Battery | 7.5A 32v ATO blade style |
| Cabinet | 14"H x 12"W x 4"D in grey, baked enamel finish |
