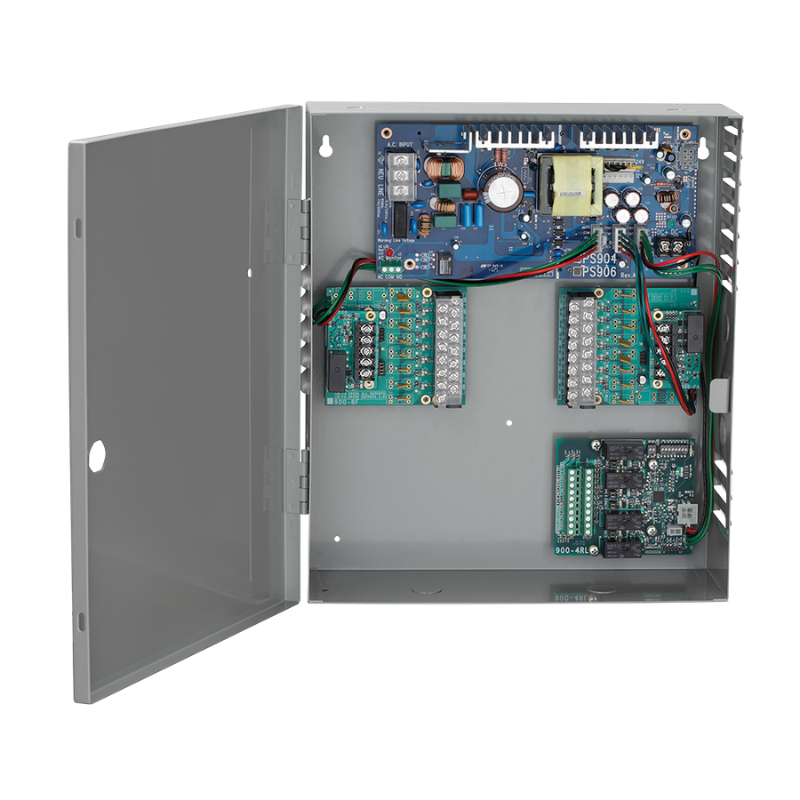

The Von Duprin PS906-4RL Power Supply delivers a dependable 6 amp regulated output with field-selectable 12/24VDC operation and includes a factory-installed 900-4RL logic relay board designed for advanced access control applications. The integrated logic supports time delays, security interlocks, and auto-operator coordination, making it ideal for electrified panic devices, electric strikes, magnetic locks, and electrified trim in commercial environments. Built with universal 120–240VAC input, foldback overload protection, LED status indicators, and isolated AC monitoring contacts, the PS906-4RL provides reliable centralized power distribution with modular expansion capability. UL 294 and ULC-S318 listed, this power supply is well-suited for healthcare, education, government, and high-traffic facilities requiring intelligent relay control and dependable system performance.
Features
| 900-4R | 4 relay controlled output board to power multiple devices |
| 900-4RL | 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock |
| 900-8F | Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection |
| 900-8P | 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2) |
| 900-FA | Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency |
| 900-BB | Battery backup |
| 900-2RS | 2 relay control board for electric latch panic devices (EL or QEL), electric strikes or electrified trim |
| 900-BBK | Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load |
| Manufacturer | Von Duprin |
| SKU | PS906-4RL |
| Grade | Grade 1 |
| Transformer Type | DC |
| Unit of Measure |
Each |
| Installation |
Commercial |
| Output Volts | 12/24 V |
| Fire Alarm Relay | No |
| Modular Options | Yes |
| Transformer Type | DC |
| Transformer Output | Up to 5 Amps |
| Product Type | Power Supplies |
| AC primary | T6.3A, 250VAC, 5 x 20mm |
| Cabinet | 14"H x 12"W x 4"D in grey, baked enamel finish |
