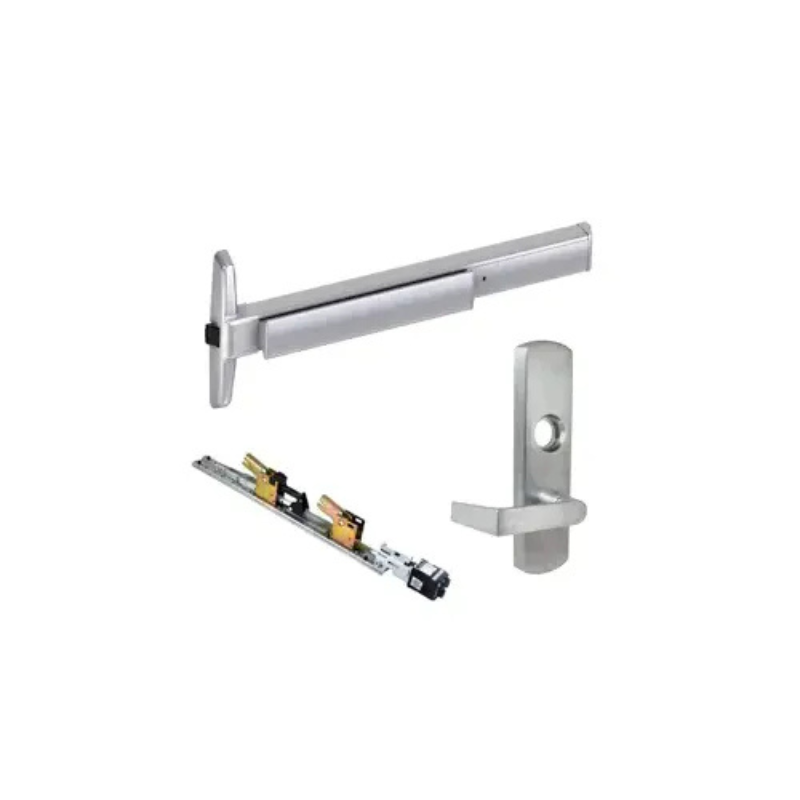

Von Duprin QEL75L-06-3-626 Classroom Rim Exit Device, Narrow Stile Pushpad, 06 Lever Trim , 36" Device, Less Dogging, Quiet Electric Latch Retraction, Less Cylinder, Left Hand Reverse, Grade 1, US26D Satin Chrome Finish

75 Series Rim Exit Device

The Von Duprin QEL75L-06-3-626 delivers institutional-grade exit security with whisper-quiet operation. This 36" rim device features electric latch retraction for seamless access control, paired with a narrow stile pushpad and 06 lever trim for reliable classroom environments. Grade 1 rated construction ensures durability in high-traffic educational settings. Left-hand reverse configuration with satin chrome finish provides corrosion resistance and professional aesthetics. Designed without dogging or cylinder for streamlined installation and maintenance in institutional applications.

Heavy-duty exit devices for all types of single and double doors.

• Device functions: Device ships EO/DT/NL. Field selectable.
• Device lengths:
  • 3': 2'6' to 3' (762mm to 914 mm)
  • 4': 3' to 4' (914 mm to 1219 mm)
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)
• Mechanism case dimensions: 2-5/16" x 2-1/8" (59mm x 54mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 5/8" (15.875mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)
