VonDuprin 9849EO-4 Concealed Vertical Cable Exit Device, Exit Only, 48" Bar

SKU: 9849EO4632D

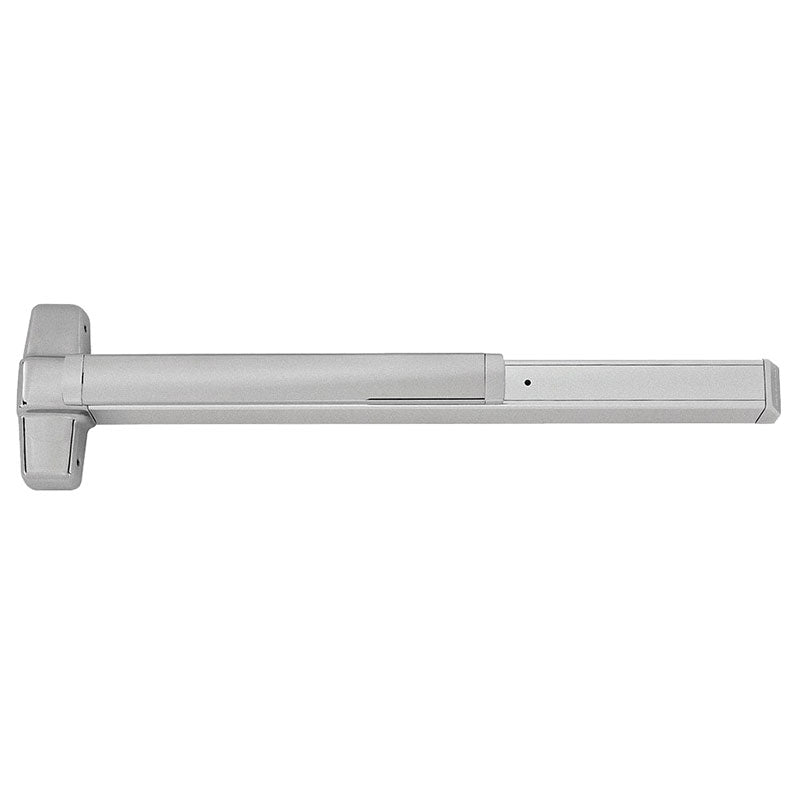

VonDuprin 9849EO-4-32D Concealed Vertical Cable Exit Bar

All VON DUPRIN Products

VonDuprin 9849EO-4 Concealed Vertical Cable Exit Device, Exit Only, 48" Bar

SKU: 9849EO4632D

$2,065.80/ea

In Stock

In Stock

Choose your options

Finish: US32D-630 Satin Stainless Steel

Variant

Quantity:

Qty

Description
Product Specs
Technical Specs
Document Center

Description

Von Duprin 9849 Grade 1 Concealed Vertical Cable Exit Device, 48" Device, 82" to 96" Door Height, Exit Only, Hex Dogging, Satin Chrome Finish, Field Reversible

9849 Concealed vertical cable device

9849 Concealed vertical cable device for use on single or double metal
doors, UL listed for panic exit hardware. These are certified to ANSI/BHMA A156.3
2014, Grade 1. The 9849 device has a smooth mechanism case and the 9949 device
has a grooved case. The concealed vertical cable device is non-handed except when
the following device options are used: SD (special dogging), or SS (signal switch).

Product Specs

Manufacturer	Von Duprin
SKU	9849EO 4
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL305
ANSI Number	A156.3 2014
Restrictions	None
BAA Qualified	Yes
Limited Warranty	3 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Concealed Vertical Cable
Mechanical Function	Exit Only, Accepts Various Trim
Device Length	48"
Hand	Field Reversible
Dogging Options	Hex Dogging
Top Strike	249
Strike Bottom	349
Includes Trim	No
Trim Type	Less Trim
Includes Cylinder(s)	No
Minimum Stile Size	4 1/4"
Door Material	Metal
Door Width	34" to 48"
Door Height	82" to 96"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	No
Reversible	Yes
Product Type	Concealed Vertical Cable Exit Devices
