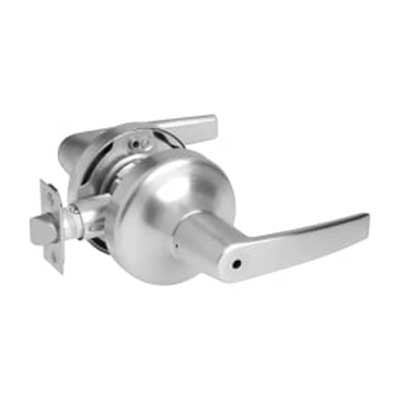

Accentra (Yale) MO4702LN-626 Privacy Lever Lockset - Grade 1 (MO Lever, Satin Chromium Plated)

  • SKU: MO4702LN626
$263.18/ea
In Stock
In Stock

The Accentra MO4702LN-626 Privacy, Bedroom, Bath Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 626 Satin Chrome Finish.

Accentra MO4702LN-626 Series grade 1 Privacy, Bedroom, Bath cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO4702LN-626 Privacy, Bedroom, Bath lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.


Function
02 Privacy
Function Family Privacy
ANSI Function
F76A - Privacy
Lever/Knob Design MO Monroe Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

Product Cut Sheet
