Corbin Russwin Deadbolt Locks

How Do Deadbolt Locks Work?

A deadbolt lock operates by extending a solid steel bolt into the door frame when engaged, providing a higher level of security than standard spring-latch locks. Unlike spring latches, deadbolts require a key or thumbturn to retract the bolt, making them resistant to forced entry and lock picking. The bolt’s length, typically 1 inch, and its hardened steel construction are critical to its effectiveness in preventing unauthorized access.

Key Features

• Heavy-Duty Construction: Corbin Russwin deadbolts, such as the DL4100 Series, feature a laminated, stacked steel deadbolt for maximum resistance to forced entry and tampering.
• Grade 1 Security: Many models, including the ML2000 Series, are ANSI/BHMA Grade 1 certified, ensuring top-tier durability and security for high-traffic areas.
• Versatile Functions: Available in single and double-cylinder, classroom, storeroom, and privacy functions to meet a wide range of security needs.
• Quick Reversible Latchbolt: The patented design allows for easy field reversibility without disassembling the lock case, streamlining installation and maintenance.
• ADA & Code Compliance: Levers and locksets meet national accessibility standards and are UL-listed for use on fire-rated doors, supporting code compliance for all building types.
• Multiple Finishes: Choose from satin chrome, brass, bronze, and stainless steel finishes to match any architectural style.

Popular Models

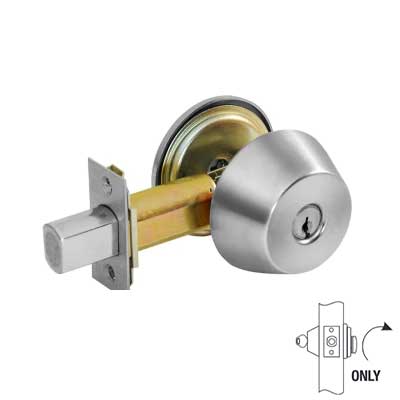

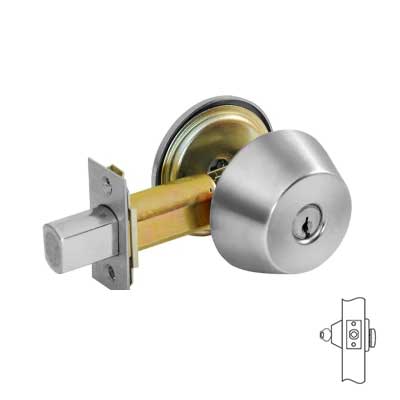

DL2200 Series Deadbolts:

• Grade 2 Security: The DL2200 Series is an ANSI/BHMA Grade 2 cylindrical deadbolt, ideal for standard-duty commercial applications.
• Solid Steel Construction: Features a 1" throw deadbolt with a hardened, free-spinning steel pin insert for enhanced resistance to sawing and prying.
• Versatile Installation: Supports standard 1-3/4" door thickness, with additional options available, and is compatible with both 2-3/4" and 2-3/8" backsets.
• Keying Options: Available with 6-pin conventional cylinders and master keying capabilities for facility-wide access control.
• Fire Rated: UL listed for use on fire-rated doors, meeting stringent safety codes.

DL3000 Series Deadbolts

• Medium-Duty Performance: The DL3000 Series is a Grade 2 deadbolt designed for reliable security in standard commercial settings.
• Single and Double Cylinder Options: Offers both single-cylinder (key outside, thumbturn inside) and double-cylinder (key both sides) configurations.
• Multiple Finishes: Available in a variety of architectural finishes, including satin chrome, bright brass, and oil-rubbed bronze, to complement any door design.
• Fire Rated: Certified for use on fire-rated doors, ensuring compliance with building and life safety codes.

Applications

Corbin Russwin deadbolt locks are ideal for:

• Schools and universities
• Hospitals and healthcare facilities
• Government and public buildings
• Commercial offices and retail spaces
• Hotels, apartments, and dormitories
• Industrial and high-security environments

Their robust construction and flexible options make them perfect for both new construction and retrofit projects where security and code compliance are paramount.
