Corbin Russwin DL3017 Classroom Cylinder Deadlock with Steel Deadbolt

The DL3017 Classroom Cylinder Deadlock has a Corbin Russwin deadbolt of zinc diecast hardened steel.

The Corbin Russwin DL3017 has a conventional cylinder and an L4 keyway. It is keyed randomly. And it is non-handed.

DL3000 Series Cylindrical Deadlocks

The DL3000 Series features:

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes are available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

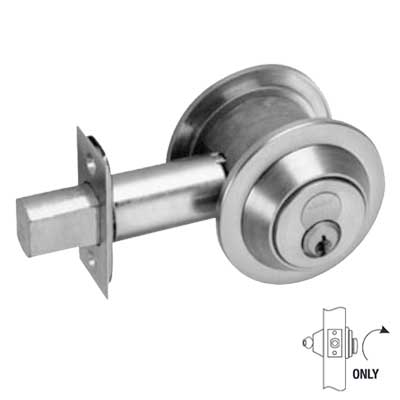

Image of Corbin Russwin Deadbolt in the DL3017
