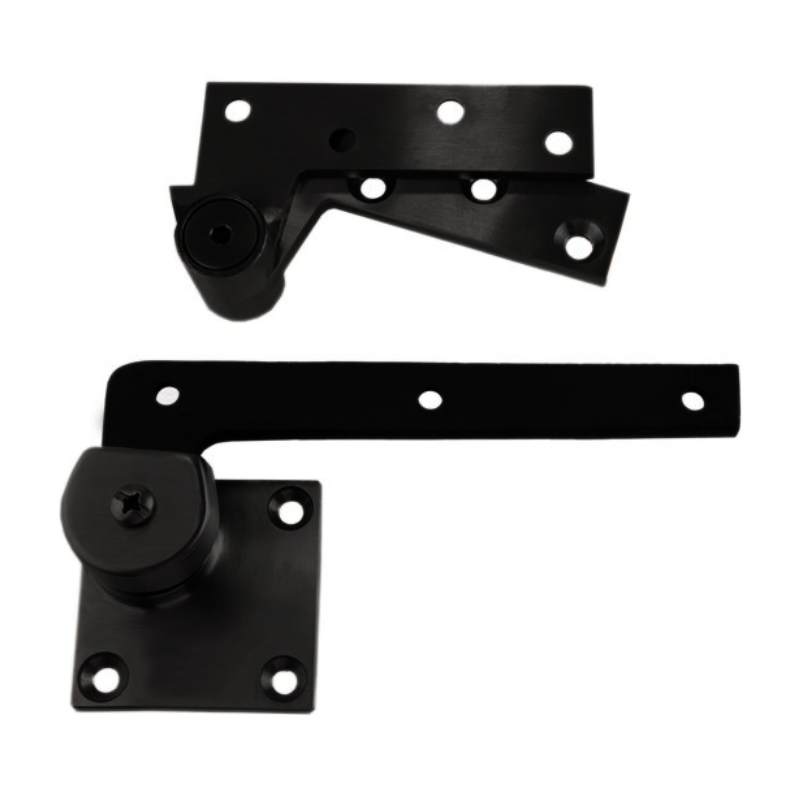

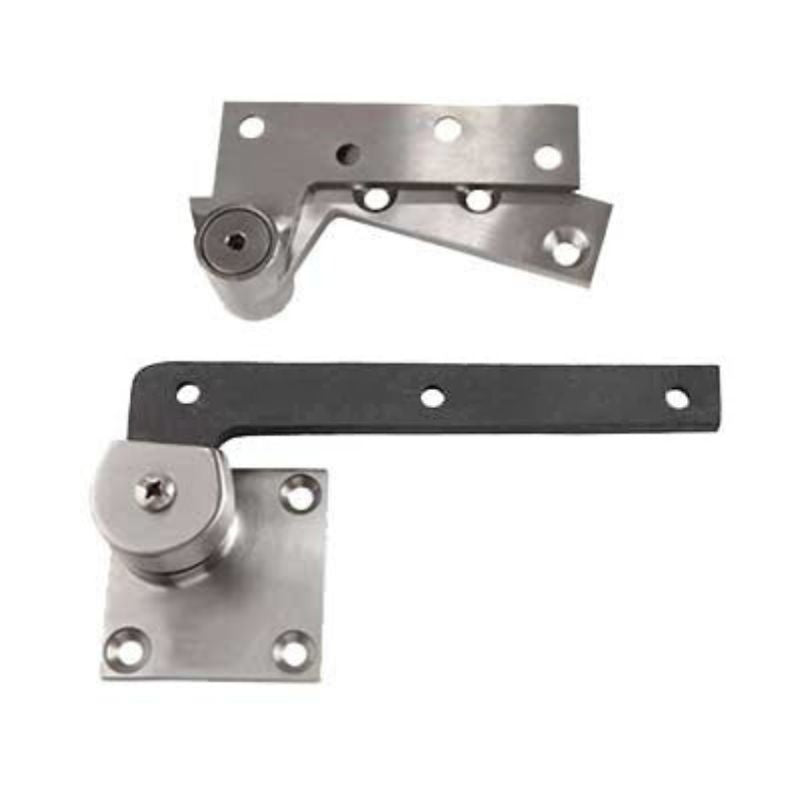

ABH 0117 Pivot Set 3/4" Offset Top And Bottom, Complete Set Top And Bottom

Complete Top, And Bottom Set. 180 Top Pivot Frame leaf mortises into header Door leaf mortises into the top of the door 0117 Bottom Pivot Handed - Specify LH or RH

Bottom leaf mortises into floor Door leaf mortises into the bottom of door Maximum door load 300 pounds Maximum door width - 42" UL listed for use on 3-hour fire-rated doors -

Standard Heavy-duty bearings Stainless steel base material Average weight per unit = 3.25 lbs

Features:

• 019 intermediate pivot recommended (order separately) Handed - Specify LH or RH
• Maximum door load 300 pounds Maximum door width - 42" UL listed for use on 3-hour fire-rated doors
• Standard Heavy-duty bearings Stainless steel base material Average weight per unit = 3.25 lbs Doors ranging from 60" to 90” tall should use one intermediate pivot.
• An additional intermediate pivot should be used for each additional 30" door height.
