ABH 0128 Center Hung Pivot Set Top And Bottom Complete Set

ABHSKU: 0128US10

Price:
Sale price$180.18
In Stock

Description

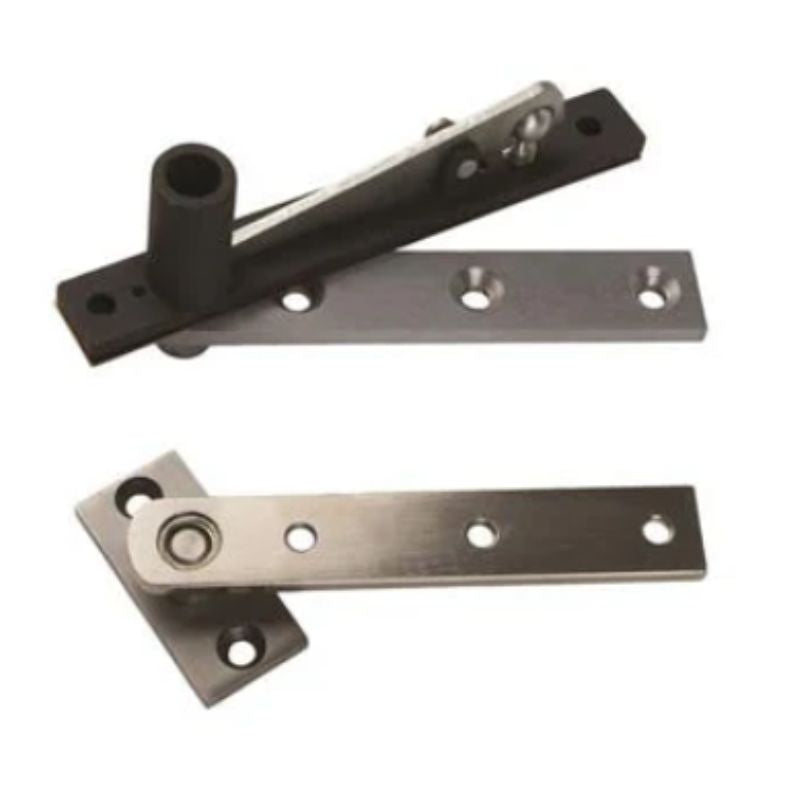

ABH 0128 Center Hung Pivot Set Top And Bottom Complete Set

The ABH 0128 Pivot Set is Center Hung and includes an ABH 0320 Top Pivot. ABH 0128 Pivot set is centered into the door thickness, Max door load 250 pounds, Max door size - 42" x 102" 0320 Top Pivot - Frame leaf mortises into header - Door leaf mortises into the top of door • 0128 Bottom Pivot - - Door leaf mortises into the bottom of door • Non-handed • Pivot set is centered into the door thickness • Maximum door load – 250 pounds • Maximum door size – 42”x 102”

0320 Top Pivot
Frame leaf mortises into the header
Door leaf mortises into the top of the door
0128 Bottom Pivot
Bottom leaf mortises on top of the finished floor
Door leaf mortises into the bottom of the door
Non-handed
The pivot set is centered into the door thickness
Maximum door load - 250 pounds
Maximum door size - 42" x 102"
Average weight per unit = 2.5 lbs
