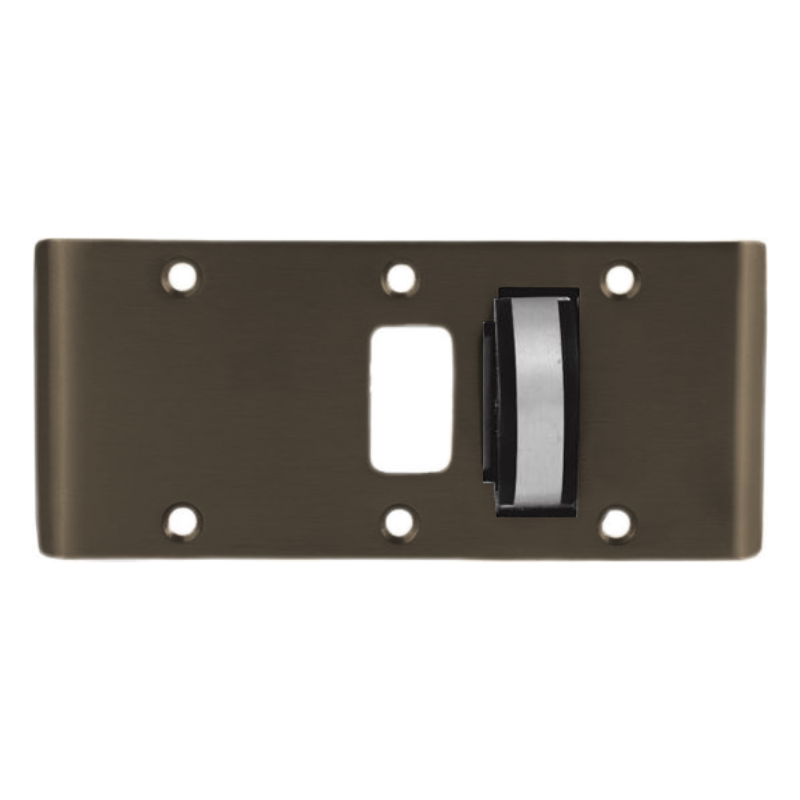

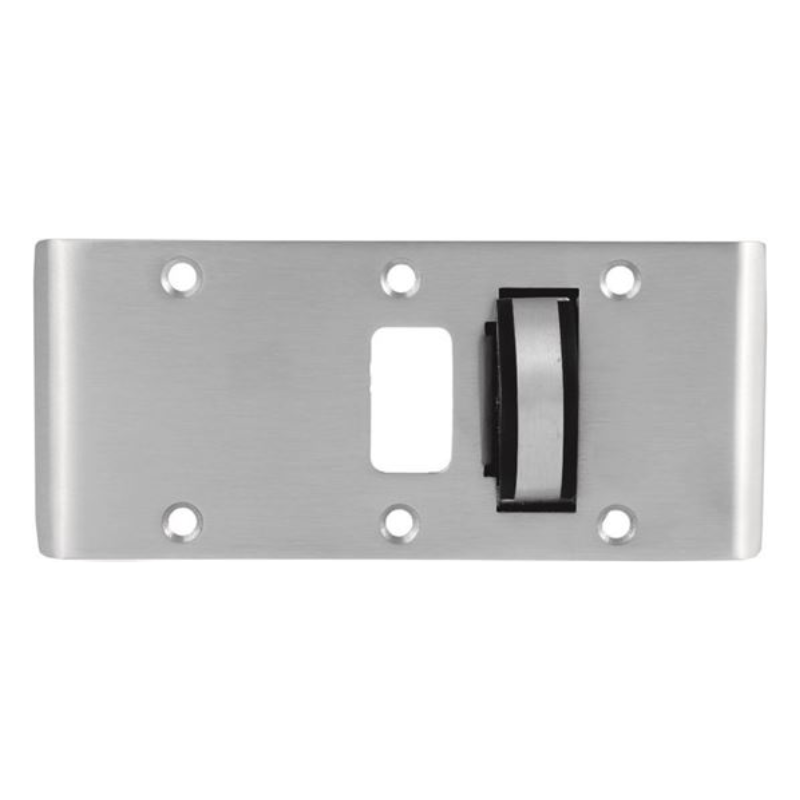

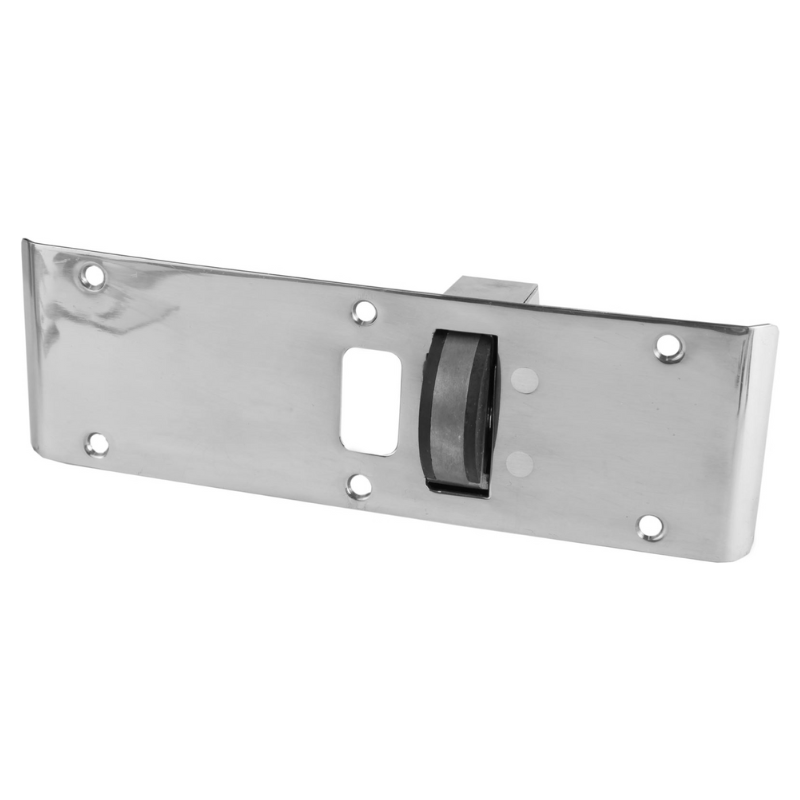

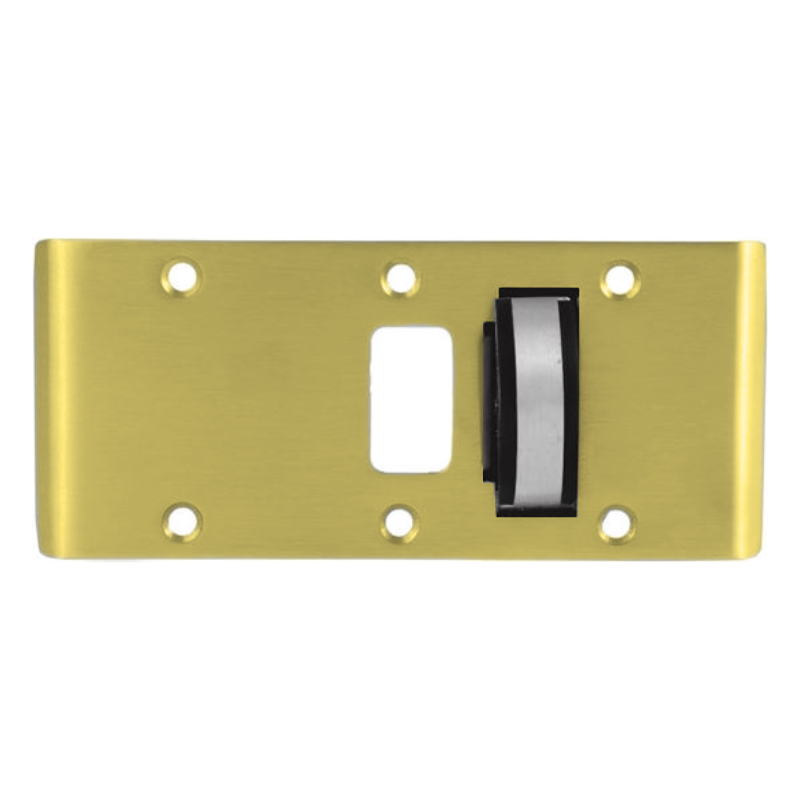

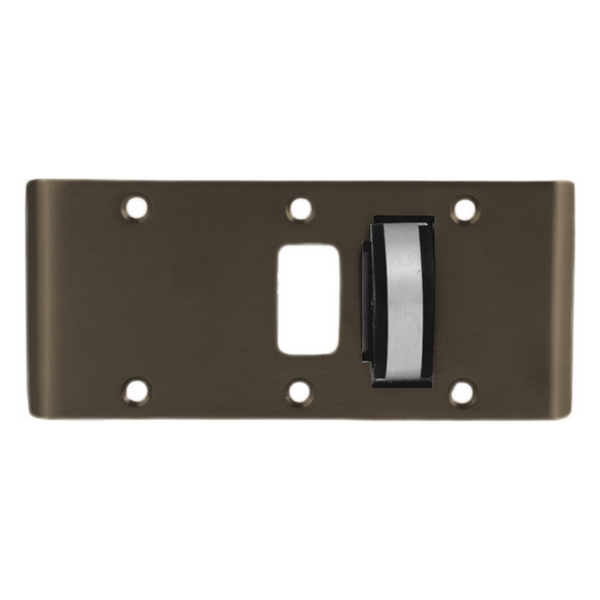

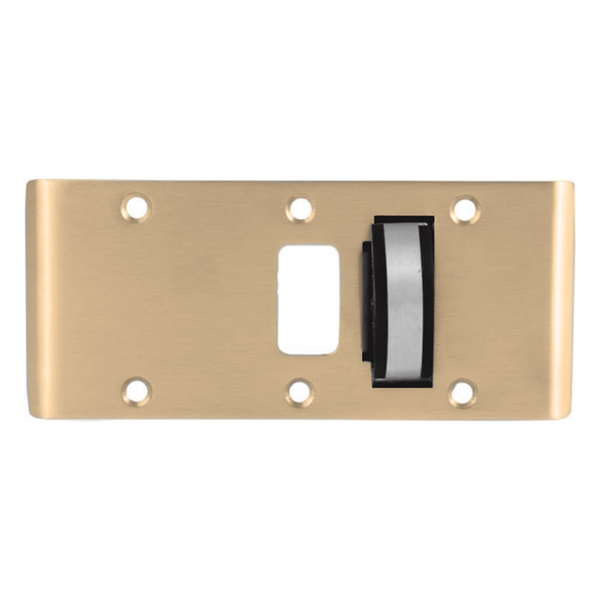

ABH CR4550 Double Lipped Strike & Rescue Stop Combo Half Moon Style, 5 3/4 Inch Frame Jamb Depth, For Center Hung Doors With Cylindrical Latch, For 1 3/4 Inch Thick Doors

The ABH CR4550 features a double-lipped strike and rescue stop combo in a half-moon design, tailored for center-hung doors with cylindrical latches. It fits doors that are 1 3/4 inches thick and requires a frame jamb depth of 5 3/4 inches.

• Intended for use in hospital or nursing home patient bathroom doors

• Allows door to open in both directions without damaging the frame after manually rotating the rescue stop into the frame

• Stop automatically returns to projected position when released

• Built-in hold back option

• Door to be mounted on center hung pivot set – ABH 0327, 0127, 0128 or 0370

• For use on 1-¾” thick doors - center hung or ⅛” inset

• Cut-out is standard for cylindrical latches. Custom units available for mortise locks

• Supplied with 8-32 x ⅜” undercut machine screws

• .074” thick stainless steel material

• Meets and/or exceeds ANSI Standard A1882
