ABH PT1000 Power Transfer

  • SKU: PT1000US28

ABH PT1000 Power Transfer

  • SKU: PT1000US28
Sale price$283.50/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: '-US28, Brushed Aluminum

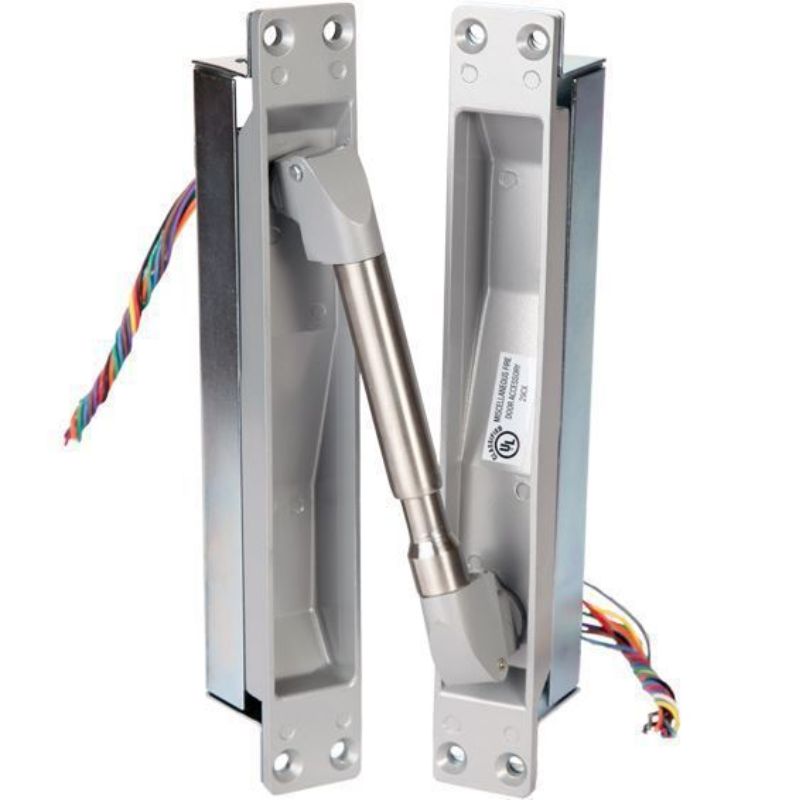

ABH PT1000 Power Transfer

The ABH PT1000 provides the means of transferring electrical power from the frame to the door in a secure and discreet manner.
- (10) 24 AWG Wires
- Max. Rating: 24VDC, 1A
Standard Finishes: US28 - Brushed Aluminum and S5 Powder Coated Dark Bronze to match US10B Finish
PT200 -(2) 18 AWG Wires -Max. Rating: 24 VDC, 5A, or 120 VAC NEC Class
PT1000 -(10) 24 AWG Wires -Max. Rating: 24 VDC, 1A
PT1000EZ(Molex Connectors) -(12) 24 AWG Wires -Max. Rating: 24 VDC, 1A

  • PT200 & PT1000 & PT1000EZ & PTC5E provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
  • Unit mortises into the edges of the door and frame and are completely concealed when the door is in the closed position.
  • All metal construction including backboxes - NO PLASTIC PARTS
  • Ideal for high abuse or heavy traffic situations
  • UL/ULC Listed for use on fire doors
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • Approximate shipping weight: 3 lbs.
  • Patent Pending
  • Matches competitor's door and frame prep

  • 1-3/4" Door thickness
  • Cam lift hinges (up to 1/2" lift) - allowing for 180 ° door swing
  • Butt hinges up to 5" - allowing for 180 ° door swing
  • 5-1/2" butt hinges - allowing for 130 ° door swing
  • 6" butt hinges - allowing for 110 ° doo swing
  • Up to 3/4" offset pivots allowing for 180 ° door swing
  • Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots, or center-hung doors
  • Average weight per unit = 2 lbs
UL LISTED: UL/ULC Listed for use on fire doors
