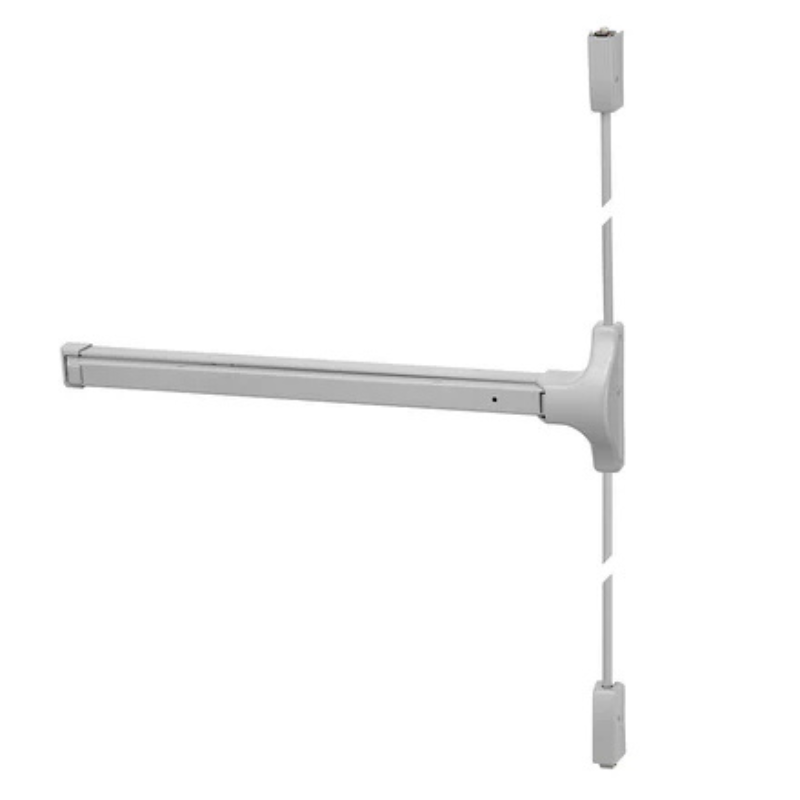

Accentra (Formerly Yale) 2110 Surface Vertical Rod Exit Device, Exit Only, Wide Stile Pushpad, 84 Inch Door Height, Hex Key Dogging, Grade 1
The Accentra 2110 Surface Vertical Rod Exit Device is a Grade 1, heavy-duty panic hardware solution designed for reliable emergency egress in high-traffic commercial environments. Featuring a wide stile pushpad and compatibility with standard 84-inch door heights, this exit-only device uses a surface-mounted vertical rod system with a deadlocking top Pullman bolt and direct-pull bottom deadbolt for secure, code-compliant performance. Hex key dogging allows the latch to be held retracted for periods of free access while maintaining safe egress at all times. The Accentra 2110 is suitable for metal, wood, or composite doors in pairs or double egress applications, delivering durable construction and ANSI/BHMA A156.3 Grade 1 certified performance.
Features
- Designed for wide stile doors
- Positive action linkage on a deadlocking top pullman bolt
- Handed, specify hand
- Simultaneous direct pull bottom deadbolt
- When unlatched, device keeps both bolts retracted until
door is shut
Applications
- Pair of doors
- Double egress
- Metal, wood or composite door materials
Product Specs
| Manufacturer | Accentra |
| SKU | 2110 |
| Unit of Measure | Each |
| Installation | Commercial |
Technical Specs
| Sizes |
36" - For door widths 30" - 36" 42" - For door widths 36-1/2" - 42" 48" - For door widths 42" - 48" |
| Door Thickness | 1-3/4" (44mm) standard |
| Door Height | 84" |
| Reversible | No |
| Minimum Stile Width | 4-1/2" (114mm) |
| Projection | 2-1/2" (64mm) active, 1-3/4" (44mm) depressed |
| Latchbolt | Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing |
| Vertical Rods | 1/2" (13mm) O.D. tubular brass, bronze or stainless steel with rod guides |
| Strike(Optional Buy Separately) | Top: Roller type 791. Bottom: Flush mounted 790. 794 floor strike optional (threshold openings). |
| Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. |
| Trims |
210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, |
| Dogging |
Hex key dogging supplied standard on panic devices. |
| Warranty |
3-year limited |
| Fire Rated |
No |
Certifications
| ANSI/BHMA: | Certified A156.3 Type 2, Grade 1 |
