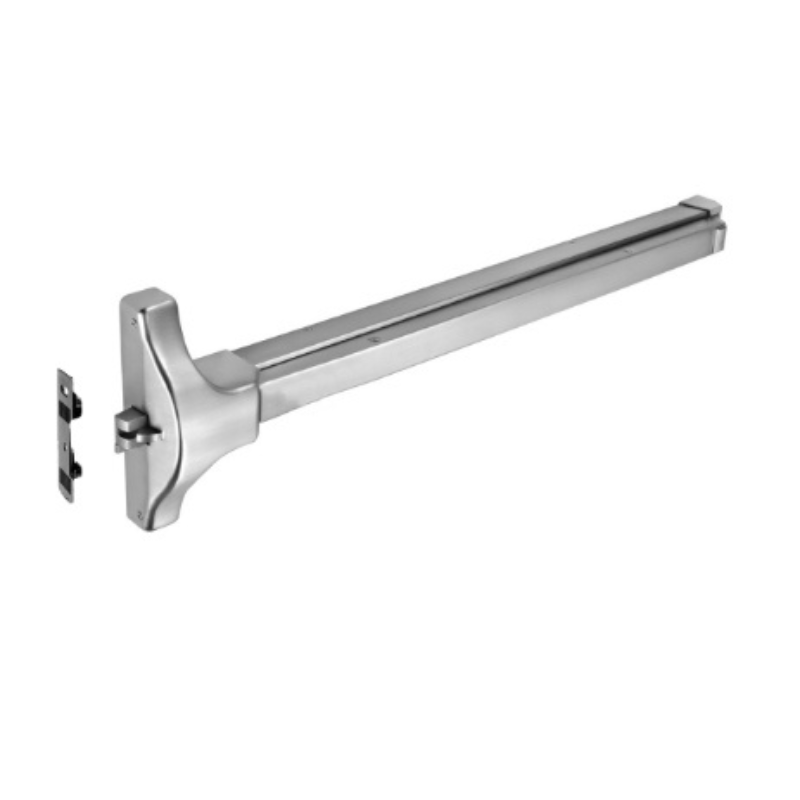

Accentra (Yale) 2150 Square Bolt Rim Exit Device, Exit Only, Wide Stile Pushpad, Hex Key Dogging, Non Handed

  • SKU: 215036689
Accentra 2150-800
Accentra 2150-800
Accentra 2150-630
Accentra 2150-691
Accentra 2150-693
Accentra 2150-695
Accentra 2150-613E
Accentra 2150-BSP
Accentra 2150-WSP
Zoomed view
All Accentra Products

Accentra (Yale) 2150 Square Bolt Rim Exit Device, Exit Only, Wide Stile Pushpad, Hex Key Dogging, Non Handed

  • SKU: 215036689
  • ✓
    Available (1 Week)
    1 Week Lead Time
Your Price
$395.75/ea
Finish: 689 Aluminum
Door Width: 36"

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Accentra (Yale) 2150 Square Bolt Rim ...
Quantity
–
+
From $395.75
Accentra (Yale) 217F-689 Trim for 210...
Quantity
–
+
$180.86
Total

Accentra (Yale) 2150 Square Bolt Rim Exit Device, Exit Only, Wide Stile Pushpad, Hex Key Dogging, Grade 1, Non Handed

The Accentra 2150 represents Yale's premium rim exit solution, engineered for high-traffic commercial applications demanding reliable egress control. This Grade 1 device features a robust square bolt mechanism paired with a wide stile pushpad for intuitive emergency operation. Hex key dogging capability provides authorized personnel with convenient access control without compromising security. The non-handed design eliminates installation complications, adapting seamlessly to left or right-hand door configurations. Exit-only functionality ensures unidirectional traffic flow while maintaining full compliance with life safety codes. Built for durability in demanding environments, this rim exit device delivers the performance standards professionals expect from Yale's commercial hardware line

Features

  • SquareBolt security deadbolt designed for maximum holding power
  • Designed for wide stile doors
  • Non-handed for easy installation
  • Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices

Applications

  • Single swing doors
  • Pairs of doors (mullion required)
  • Metal, wood or composite door materials
Sizes:


36" - For door widths 30" - 36"

42" - For door widths 36-1/2" - 42"

48" - For door widths 42" - 48"
Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Deadbolt 1" (25mm) slide projection bolt with full 3/4" (19mm) projection
Strike(Optional Buy Separately) 757F, 793 optional (double door application, panic only)
Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit
hardware.
Trims

121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F
series escutcheon trim, 630F series pull/thumbpiece trim.
ANSI/BHMA

Certified: A156.3 Type 1 or 28, Grade 1
Dogging

Hex key dogging supplied standard on panic devices
Warranty

3-year limited




ANSI/BHMA:
Certified: A156.3 Type 1 or 28, Grade 1

Product Cut Sheet
