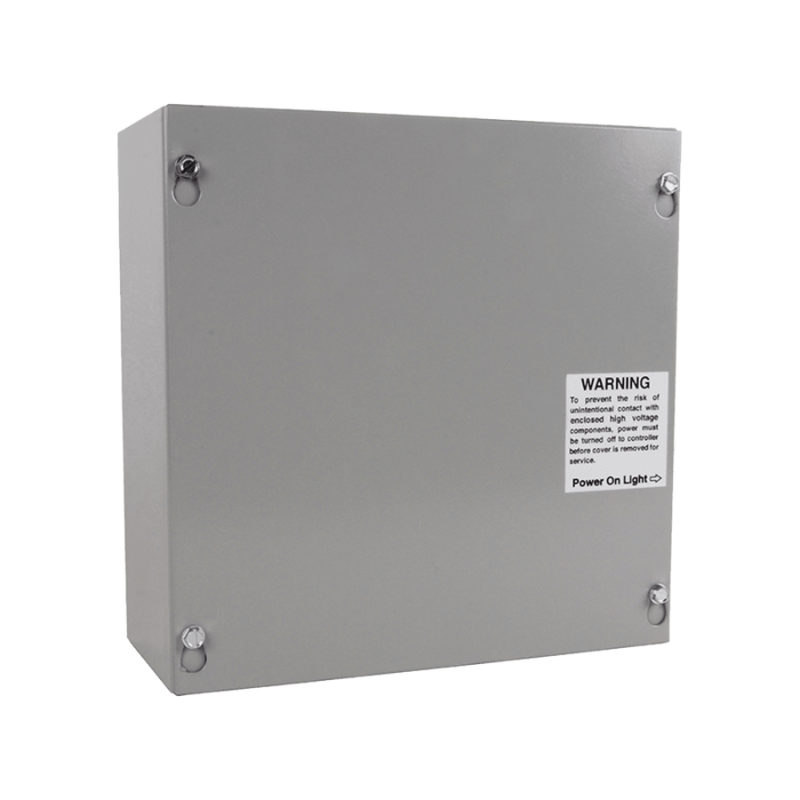

Accentra (Yale) 782 Power Control for Electric Latch Retraction Exit Devices

The Accentra (Yale) 782 Power Supply manages one or two electric latch retraction "P" exit devices with dual 20-second timers for synchronized or independent operation. It accepts momentary or timed dry contact inputs and integrates seamlessly with access control systems, automatic door operators, and fire alarm interfaces for comprehensive commercial door control.

Note: The 782 is required for use with the “P” latch retraction option. Using any other power supply with the “P” option voids the warranty of the device.

Features

• Two control inputs. Accepts normally closed dry contacts for device activation from a key switch, push button, access control or fire alarm system.

• Two normally open control outputs for automatic door operators

• Two “P” device outputs

• Fire Alarm Interface input

• 24VDC output for audible or LEDs .25 AMP

Electrical Specifications

• 120 VAC 60Hz 750mA (max.)
• Not available in 240V
• 38-42 VDC output
• 10 amp inrush

Applications (use with):

• D- Delayed Egress
• Safe - Fail Safe mortise device trim control
• Secure - Fail Secure mortise device trim control
• 690/691 - Electric Trim
• MELR
