Description

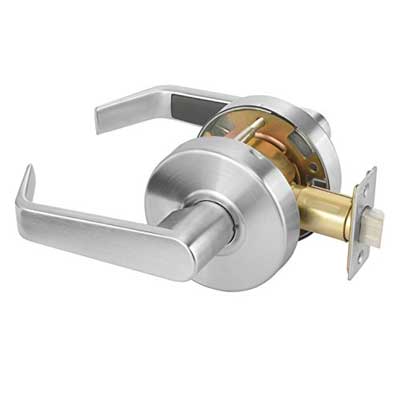

Accentra (Formerly Yale) AU4601LN BSP Grade 2 Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, BSP Black Suede Powder Coat, Non-handed
The Accentra (Formerly Yale) AU4601LN BSP is a Grade 2 Commercial Cylindrical Lockset, 2 1/8" bore, 2 3/4" backset. The 01 stands for the passage function latching non-keyed, 4600 is the series, AU is the Augusta Lever and the BSP is a Black Suede Powder Coat Finish
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | AU4601LN BSP |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F75 |
| Limited Warranty | 3 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specifications
| Function | 01 Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design |
AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | MCP234 |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
