Description

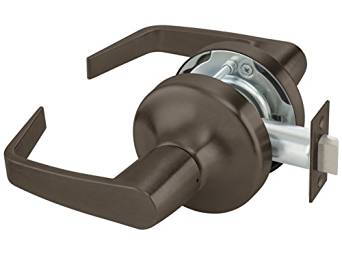

Accentra (Formerly Yale) AU4701LN-613E Passage Function Lever Latchset 2-3/4" Backset- Grade 1 (AU Lever, 613E Dark Oxidized Satin Bronze Equivalent)
The AU4701LN 613E is a Grade 1 Cylindrical Lockset 2 1/8" bore, 2 3/4" backset. The AU stands for Augusta Lever, 01 is a passage function and the 613E is a Dark Oxidized Satin Bronze Finish
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | AU4701LN 613E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F75 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 613E |
| Finish Description | Dark Oxidized Bronze |
| Finish Family | Matte Silver |
Technical Specifications
| Function |
01 Passage Function |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design |
AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
