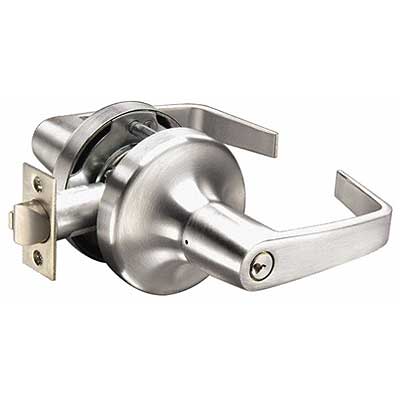

Accentra (Yale) AU4705LN-626 Storeroom Door Lock - Grade 1 AU Lever, Schlage C Cylinder Keyed Random, US26D/626 Brushed Chrome Finish

  • SKU: AU4705LN626
AccentraAU4705LN-626
AccentraAU4705LN-626
All Accentra Products

Accentra (Yale) AU4705LN-626 Storeroom Door Lock - Grade 1 AU Lever, Schlage C Cylinder Keyed Random, US26D/626 Brushed Chrome Finish

  • SKU: AU4705LN626
$285.39/ea
In Stock
In Stock

Accentra (Formerly Yale) AU4705LN-626 Storeroom Door Lock 2-3/4" Backset - Grade 1 AU Lever, Schlage C Cylinder Keyed Random, US26D/626 Brushed Chrome Finish


The AU4705LN 626 is a Grade 1 Cylindrical Lockset, 2 1/8" bore, 2 3/4" backset. This 4700LN Series has an 05 Storeroom Function. The Storeroom function always needs the key once the door closes, but you can always get out from the inside. The cylinder is a Schlage C Fixed Core, Keyed Randomly, and the Finish is a 626/US26D Brushed Chrome

Vendor Assa Abloy
Manufacturer Accentra
SKU AU4705LN 626
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F86
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Dark Bronze



Function
05 Storeroom
Function Family Storeroom
ANSI Function
F86 - Storeroom
Lever/Knob Design
AU Augusta Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 694
Std. Latch Type Beveled Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock




Product Cut Sheet
