Description

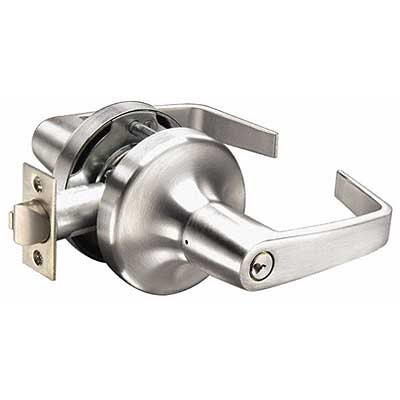

Accentra (Formerly Yale) AU4707LN-626 Entrance Door Lock 2-3/4" Backset - Grade 1 AU Lever, Schlage C Cylinder Keyed Random 626/US26D Satin Chromium Plated Finish
The AU4707LN 626 is a Grade 1 Cylindrical Lockset, 2 3/4" backset with a 2 1/8" bore. The AU is an Augusta Lever Handle. This 4700LN Series is in a 07 Entrance Function. An Entrance Function has a Pushbutton inside and Cylinder outside. The lock comes with a Schlage C Fixed Core Keyed Randomly. The finish is a 626/US26D Brushed Chrome Finish
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | AU4707LN 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish |
626/US26D |
| Finish Description | Satin Chrome Finish |
| Finish Family | Chrome |
Technical Specifications
| Function | 07 Entry |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design | AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
