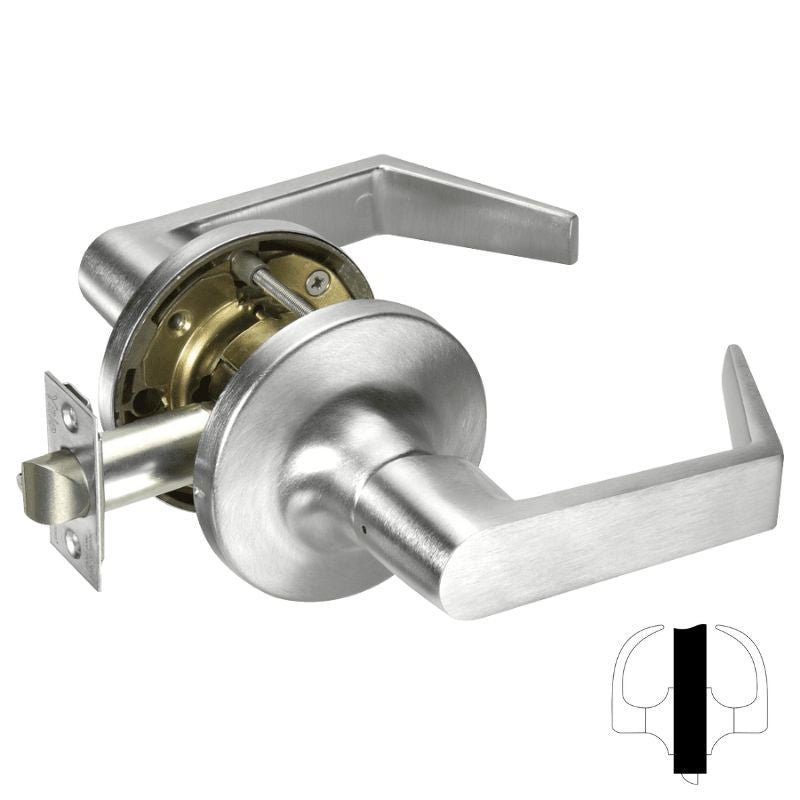

Accentra (Yale) AU5401LN Passage/Closet Latch Cylindrical Lock, Non-Keyed

  • SKU: AU5401LN626
Accentra AU5401LN-626
Accentra (Yale) AU5401LN-612
Accentra AU5401LN-626
Accentra (Yale) AU5401LN-612
All Accentra Products

Accentra (Yale) AU5401LN Passage/Closet Latch Cylindrical Lock, Non-Keyed

  • SKU: AU5401LN626
$339.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Accentra AU5401LN Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed

The AU5401LN is a Grade 1 Cylindrical Lever Lockset that has a 2 1/8" bore, 2 3/4" backset. The 5400 series lock is an 01 Passage Function, meaning it has no key, positively latches but cannot be locked. The AU is an Augusta Style Lever

Passage or Closet Latch
• For doors that do not require locking.
• Either lever operates latchbolt at all times

Vendor ASSA ABLOY
Manufacturer Accentra
SKU AU5401LN
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F75
Limited Warranty 7 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No



Function
01 Passage
Function Family Passage
ANSI Function
F75 - Passage
Lever/Knob Design
AU Augusta
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
