Description

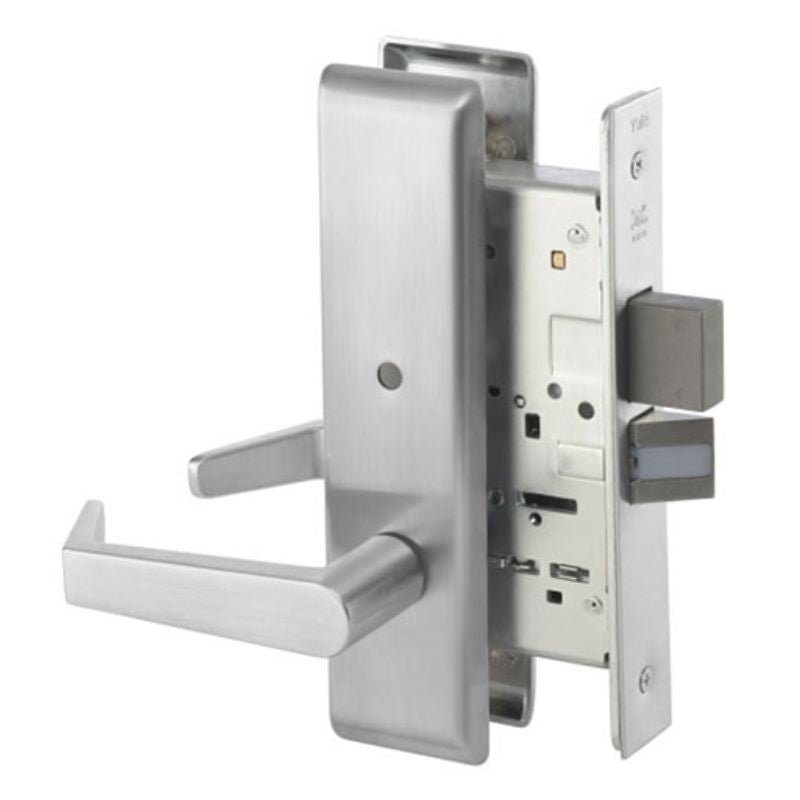

Accentra (Formerly Yale) AUCN8802FL-626 Privacy With DeadBolt Mortise Lock, Augusta Lever, CN Escutcheon, Grade 1, Field Reversible, Satin Chrome Plated Finish
Accentra AUCN8802FL-626 Privacy with Deadbolt Mortise Lock features a Grade 1 Augusta Lever and CN Escutcheon, with a satin chrome plated finish. This lock is designed to be field reversible for added convenience.
- Latchbolt retracted by knob/lever either side
- Deadbolt operated by thumbturn inside
- When the deadbolt is projected, outside knob/lever is automatically locked
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
- In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | AUCN8802FL 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Function | 02-Privacy, Bedroom or Bath Lock |
| ANSI Function | F19 - Privacy/Bed/Bath |
| Lever/Knob Design | AU - Augusta Lever |
| Rose/Escutcheon Design |
CN Escutcheon |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
