Description

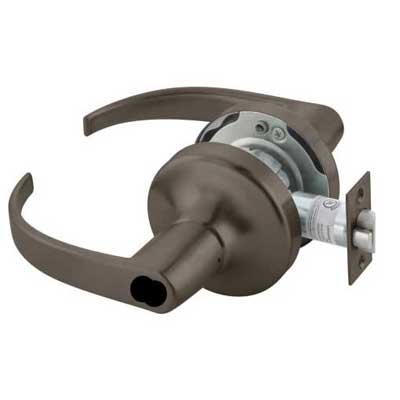

Accentra B-PB4707LN 613E Grade 1 Entry Cylindrical Lock, Pacific Beach Lever, B is an SFIC Interchangeable Core, Less Cylinder, 613E Dark Oxidized Bronze Finish, Non-handed
The Accentra BPB4707LN 613E is a Grade 1 Cylindrical Lock, a 2 3/4" backset, and a 2 1/8" Bore. B stands for SFIC Interchangeable Core Less Cylinder, PB stands for PB Pacific Beach Lever, 4700 is the series, and 07 is an Entrance function. The finish is a 613E Oil Rubbed Bronze Finish.
Technical Specifications
| Function |
07 Entry |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design |
PB Pacific Beach |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 or 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
