Description

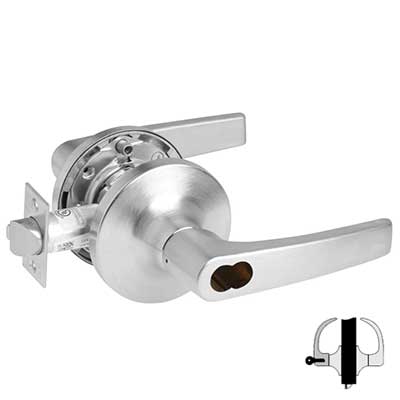

Accentra (Formerly Yale) BMO5308LN-626 Classroom Function Lock - 2-3/4" Backset, MO Lever, Best SFIC Interchangeable Core, Less Cylinder, 626 Satin Chrome Finish
The Accentra (Formerly Yale) BMO5308LN 626 is a Grade 2 Commercial Cylindrical Lockset with a 2 1/8" bore in a 2 3/4" backset. The B stands for SFIC small format Interchangeable core, The MO stands for Monroe Lever. This 5300LN series lock comes in a 08 Classroom function, Key Lock/Unlocks lever. The finish is a US26D/626 Brushed Chrome Finish
Product Specifications
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | B-MO5305LN 626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 2, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specifications
| Function | 05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | MO Monroe |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6/7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
