Accentra (Yale) MO4701LN-626 Passage Function Lever Latchset - Grade 1 (MO Lever, Satin Chromium Plated)

  • SKU: MO4701LN626
AccentraMO4701LN-626
AccentraMO4701LN-626
All Accentra Products

Accentra (Yale) MO4701LN-626 Passage Function Lever Latchset - Grade 1 (MO Lever, Satin Chromium Plated)

  • SKU: MO4701LN626
$232.00/ea
In Stock
In Stock

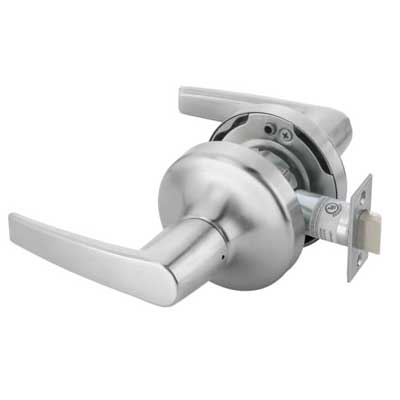

The Accentra MO4701LN-626 Passage Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 626 Satin Chrome Finish.

Accentra MO4701LN-626 Series grade 1 Passage cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO4701LN-626 Passage lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.

Function 01 Passage
Function Family Passage
ANSI Function
F75 - Passage
Lever/Knob Design MO Monroe Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
