Accentra (Yale) MO4708LN-626 Classroom Function Cylindrical Lock 2-3/4" Backset - Grade 1, MO Lever, Schlage C Keyway, Keyed Random, 626 Satin Chromium Plated

  • SKU: MO4708LN626
AccentraMO4708LN-626
AccentraMO4708LN-626
All Accentra Products

Accentra (Yale) MO4708LN-626 Classroom Function Cylindrical Lock 2-3/4" Backset - Grade 1, MO Lever, Schlage C Keyway, Keyed Random, 626 Satin Chromium Plated

  • SKU: MO4708LN626
$285.00/ea
In Stock
In Stock

Accentra (Formerly Yale) MO4708LN-626 Classroom Function Cylindrical Lock 2-3/4" Backset - Grade 1, MO Lever, Schlage C Keyway, Keyed Random, 626 Satin Chromium Plated

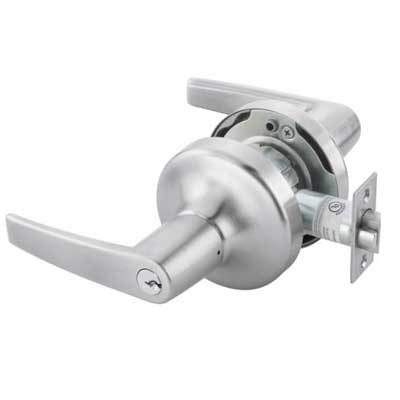

The Accentra MO4708LN 626 is a Grade 1 cylindrical lockset with a 2 1/8" bore, and 2 3/4 backset. The MO stands for Monroe Lever, The 08 Function is a Classroom Function key locks/unlocks lever. The Finish is a US26D/626 Brushed Chrome.
Function 08 Classroom
Function Family Classroom
ANSI Function
F84 - Classroom
Lever/Knob Design MO Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 694
Std. Latch Type Beveled Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock




Product Cut Sheet
