Accentra (Yale) MO5305LN-626 Medium Duty Cylindrical Lockset, Storeroom Function, MO Lever, Schlage "C" Key Way, Keyed Random, 626 Satin Chromium Plated

  • SKU: MO5305LN626
$268.65/ea
In Stock
In Stock

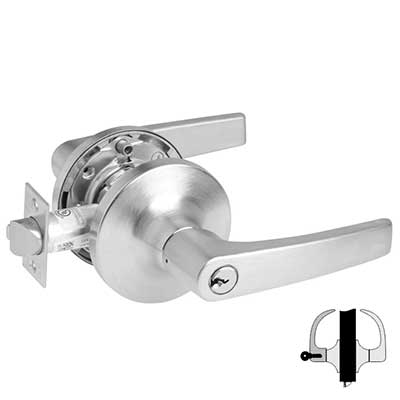

 Accentra MO5305LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset,- Storeroom Function, MO Lever, Schlage "C" Key Way, Keyed Random, 626 Satin Chromium Plated

The Accentra MO5305LN-626 is a grade 2 cylindrical lock that has a 2 1/8" bore, and a 2 3/4" backset. The MO stands for Monroe lever, 05 is a Storeroom Function-you always needs the key to get in, but you can always get out the free passage.  626/US26D is a Satin Chrome Finish. These come Schlage C Conventional core keyed random with 2 change keys per lock.



Function 05 Storeroom
Function Family Storeroom
ANSI Function
F86 - Storeroom
Lever/Knob Design MO Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 380AN
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
