Description

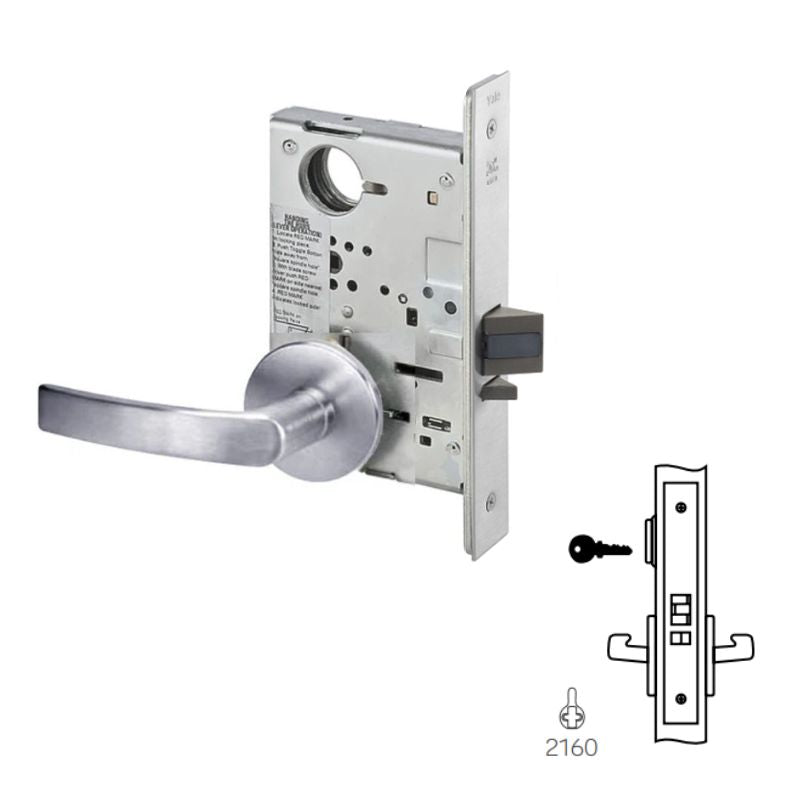

Accentra (Formerly Yale) MOR8891FL-24VDC-626-REX-LC Electric Mortise Lock, Outside Fail Secure Single Cylinder, Request to Exit, 24VDC, Monroe Lever, CO Rose, Less Cylinder, Grade 1, Field Reversible, US26D Satin Chrome Plated Finish
Accentra (Formerly Yale) MOR8891FL-24VDC-626-LC Electric Mortise Lock, Outside Fail Secure Single Cylinder, with the CMonroe Lever and CO Rose, is a grade 1 product that is field reversible and finished with a US26D satin chrome plating. This high-quality lock does not include a cylinder, making it versatile and easily adaptable for various security needs.
- Power off – outside lever active
- Power on – outside lever locked
- Auxiliary latch deadlocks latchbolt
- Inside lever always free
- Mechanical key override by outside when locked
Yale 8800 Series Electric Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Applications
Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms. For narrow frame profiles, consult factory.
Trim Designs
8800 electrified mortise locksets are available with all knob, lever, SL and Reflections® trims.
ANSI/BHMA
Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).
Electrical Specifications
- Fail Safe/Fail Secure
- Voltage: 12VDC or 24VDC Regulated
- Current Draw:
.25A at 24VDC
.5A at 12VDC
- Operating Temp.:
Max. 151°F (66°C)
Min. -31°F (-35°C)
- All monitoring switches rated at:
2 Amp @ 30 VDC
3 Amp @ 125 VAC
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | MOR8891FL 24VDC 626 LC |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass |
| ANSI Number | A156.115/A156.115-W |
| Design A | MO Lever |
| Design B | CO Rose |
| Limited Warranty | 2 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Function | 91-Outside Fail Secure Single Cylinder |
| Lever/Knob Design | MO - Monroe Lever |
| Rose/Escutcheon Design | CO Rose |
| Cylinder Type | Less Cylinder |
| Door Thickness | 1-3/4" |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Strike Number | 2815 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Power | Hard Wired |
| Operating Voltage | 24VDC |
| Amp Draw | .5 Amps |
| Product Type | Electric Mortise Lock |
