Description

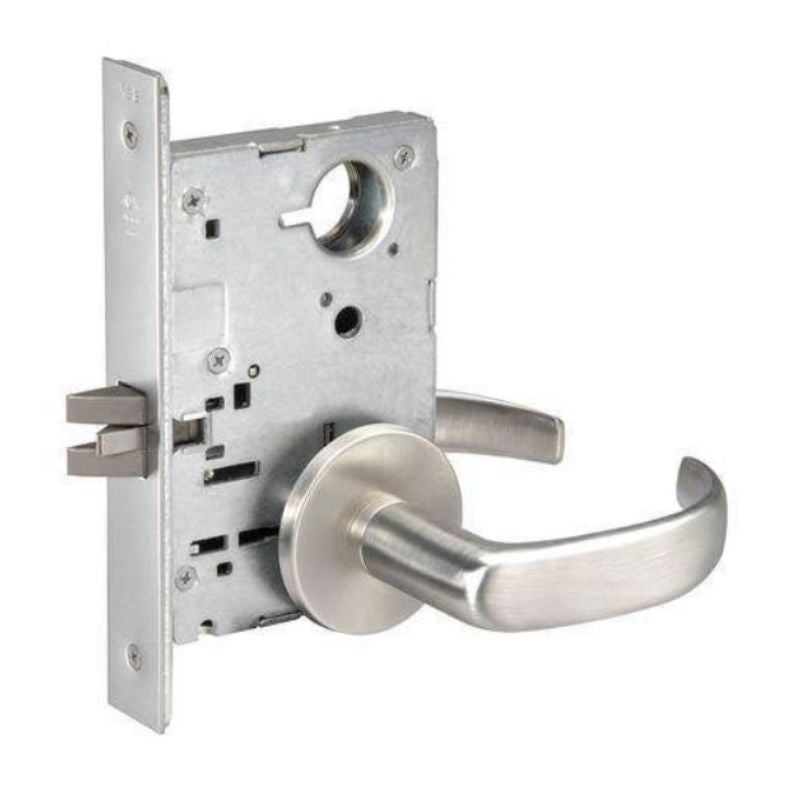

Accentra (Formerly Yale) PBR8801FL-626 Passage or Closet Mortise Lock, Pacific Beach Lever, CO Rose, Grade 1, Field Reversible, Satin Chrome Plated Finish
Accentra's AUR8801FL-626 is a top-of-the-line mortise lock designed for easy passage or closet access. Featuring a satin chrome plated finish and a field reversible design, this Grade 1 lock is built with expert craftsmanship and attention to detail. The Pacific Beach lever and CO rose add a touch of elegance to any space.
- For doors that do not require locking
- Latchbolt retracted by knob/lever either side at all times
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | PBR8801FL 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| Function | 01-Passage or Closet Latch |
| ANSI Function | F01 - Passage |
| Lever/Knob Design | PB - Pacific Beach Lever |
| Rose/Escutcheon Design | CO Rose |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
