Description

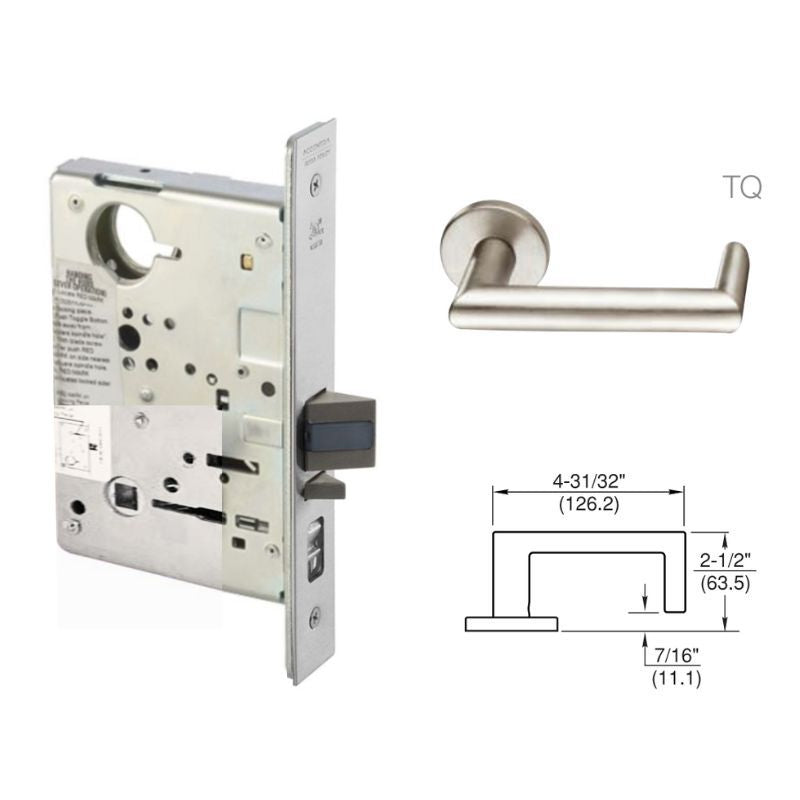

Accentra (Formerly Yale) TSR3-8807RL-626-LC Entry Mortise Lock, Reflections Thames Series TS Lever Design, R3 Rose, Less Cylinder, Specify Handing, Satin Chromium Plated Over Nickel Finish
The Accentra TSR3-8807RL-626 Entry Mortise Lock is expertly crafted with a Satin Chromium Plated Over Nickel finish for a sleek and durable design. Its Reflections Thames Series TS Lever Design, R3 Rose, and Less Cylinder make it an ideal choice for any storage or closet space. Be sure to specify the desired handing for optimal functionality.
- For office doors where locking is required
- Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator
- When outside knob/lever is locked, latchbolt is operated by key outside and knob/lever inside
- Deadlocking latchbolt
Reflections® Decorative Trim
Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.
Yale 8800 Series Mortise Locks
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
- Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility: Field reversible handing
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
Product Specs
| Manufacturer | Accentra (Yale) |
| SKU | TSR3-8807RL-626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
Technical Specs
| Function |
07-Entry Lock |
| ANSI Function |
F04 - Entry/Office |
| Lever/Knob Design |
TS - Thames TS Lever |
| Rose/Escutcheon Design | R3 Rose |
| Cylinder Type | Less Cylinder |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" |
| Std. Strike Number | 2815 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Product Type | Mortise Lock |
