Arrow GL87-SR-26D Classroom Lever Lock, Sierra Lever, Conventional Cylinder, A Keyway, Satin Chrome Finish

  • SKU: GL87SR26D
Arrow GL87SR 26D
Arrow GL87SR 26D
All ARROW Products

Arrow GL87-SR-26D Classroom Lever Lock, Sierra Lever, Conventional Cylinder, A Keyway, Satin Chrome Finish

  • SKU: GL87SR26D
$310.25/ea
In Stock
In Stock

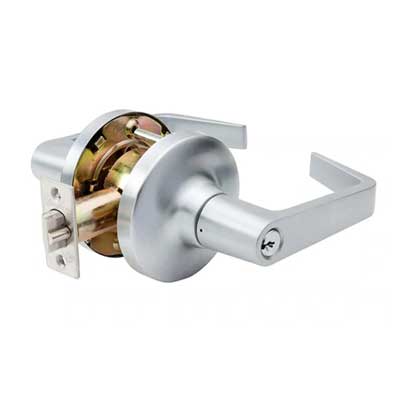

The Arrow GL87-SR-26D is a Classroom Function Lever Lock, with a Sierra Lever, a Conventional Cylinder, with an A Keyway, has a 2 3/4" Backset, a 4 7/8" Strike, and comes in Satin Chrome Finish.

 Classroom - F84

  • Latchbolt operated by lever either side except when key outside locks outside lever
  • Inside lever always free
  • Key outside locks/unlocks outside lever only

The Arrow GL Series is a grade 1 heavy-duty lever lock that is ADA compliant, and offers an economically pleasing solution for ADA compliance.



Vendor Assa Abloy
Manufacturer Arrow
SKU GL87-SR-26D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type BHMA A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F84
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver



Function 87- Classroom
Function Family Classroom
ANSI Function F84 - Classroom
Lever/Knob Design SR - Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-9/16" Rose Diameter
Rose/Escutcheon Dimensions 3-9/16"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number G71
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
